Slot-saving PII Industrial SBC with LCD controller, Ethernet, ISA High Drive, & Flash Disk
Product ID: SBC-770
Send Inquiry

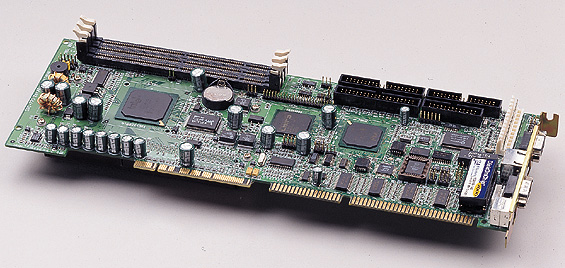

AAEON has just released a new addition to its industrial grade CPU card family, the SBC-770 Full-size CPU card. Targeting the industrial PC markets which need more onboard features and the ability to drive more peripheral boards, the SBC-770 supports VGA/LCD, 100 Base-Tx, and ISA High Drive Capability.
The SBC-770 features built-in VGA/LCD controller, Ethernet interface, High Drive Function and the socket for the new DiskOnChipR Flash Disk. These features make the SBC-770 an ideal solution for system integrators to build mission critical applications such as networking, telecommunications, and the rapidly growing number of CTI (Computer Telephony Integration) systems. Features include:
Intel Slot 1 architecture supports IntelR Pentium II processor 233~450MHz(with system bus frequencies of 66/100MHz)
C&T69000 LCD controller supports 36-bit TFT panels
100Base-Tx Fast Ethernet
High Drive design to enhance the ISA driving capacity
Socket for DiskOnChip, supports up to 144MB solid state disk
Two USBs
NOTE TO EDITORS: AAEON is a professional supplier of Single Board Computers. We offer variety of Single Board Computers for a wide range of industrial and embedded applications. Form factors include: All-in-One 5.25" FDD-size SBCs, PC/104 Modules, Half-size PISA/ISA Bus CPU Cards, Full-size PICMG CPU Cards and All-in-One LPX size SBCs.
The SBC-770 features built-in VGA/LCD controller, Ethernet interface, High Drive Function and the socket for the new DiskOnChipR Flash Disk. These features make the SBC-770 an ideal solution for system integrators to build mission critical applications such as networking, telecommunications, and the rapidly growing number of CTI (Computer Telephony Integration) systems. Features include:
Intel Slot 1 architecture supports IntelR Pentium II processor 233~450MHz(with system bus frequencies of 66/100MHz)
C&T69000 LCD controller supports 36-bit TFT panels
100Base-Tx Fast Ethernet
High Drive design to enhance the ISA driving capacity
Socket for DiskOnChip, supports up to 144MB solid state disk
Two USBs
NOTE TO EDITORS: AAEON is a professional supplier of Single Board Computers. We offer variety of Single Board Computers for a wide range of industrial and embedded applications. Form factors include: All-in-One 5.25" FDD-size SBCs, PC/104 Modules, Half-size PISA/ISA Bus CPU Cards, Full-size PICMG CPU Cards and All-in-One LPX size SBCs.
