Pro-Cell Co., Ltd.

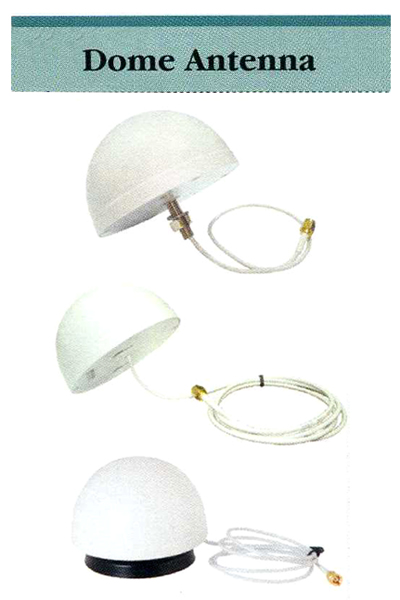

Most of Dome antenna be used in some place that do need widely but not longer transfer space and that might not able to accept big diet angle happen. Best place like hotel, hospital, office or a few floor building, the coverage will not very high, but the circular transmission character make diet angle is quite small even the close antenna place.
Most of our Dome antennas with good electronic function, every single antenna must pass our serial tune process and we use good quality material for component & easy settle mount for end user using. To make things easy is our mission statement. To keep good quality will bring long term business for our customer & their brand in market, and make things easy is always our mission statement.
Most of our Dome antennas with good electronic function, every single antenna must pass our serial tune process and we use good quality material for component & easy settle mount for end user using. To make things easy is our mission statement. To keep good quality will bring long term business for our customer & their brand in market, and make things easy is always our mission statement.
Specifications
- Product Code: *A-******-**-*
- CA: Standard DOME Antenna
- MA: Magnetic DOME Antenna
- W: Wall-mount Type
- Cable Length (mm)
- Connector Type
- Cable Type
- V.S.W.R.: ≤ 2.0 Impedance: 50Ω ± 5Ω
- Polarization: V/H
- Model No: CA-01000-01-9
- Frequency Range: 2,400 ~ 2,483.5 MHz
- Gain (dBi): 5
- Beam Width: H:79.6 / E:61.6
- Connector: SMA Male RS
- Size (mm): Ø90 x 55
- Model No: CA-W01000-01-9
- Frequency Range: 2,400 ~ 2,483.5 MHz
- Gain (dBi): 5
- Beam Width: H:79.6 / E:61.6
- Connector: SMA Male RS
- Size (mm): Ø95 x 55
- Model No: MA-01500-01-9
- Frequency Range: 2,400 ~ 2,483.5 MHz
- Gain (dBi): 5
- Beam Width: H:79.6 / E:61.6
- Connector: SMA Male RS (Magnetic Base Type)
- Size (mm): Ø95 x 73
Main Products
Directional Antenna, Wimax Antenna, Omni Antenna, Sector Antenna, CPE Wireless, Panel Antenna, Yagi Antenna, Sectore Antenna, Grid Antenna, Rubber Antenna
