Avertronics Inc.
Electronic Ballast
Product ID: SI118-40, SI180, SI214-35, SI249, SI254, SI254-58, SI280, SIS154-58, SIS180
Send Inquiry
Digitally Controlled "Universal Lamp" Ballast with Option of 1 or 2 Lamps and Automatic Identification in Of Lamps and Wattages.
Specifications

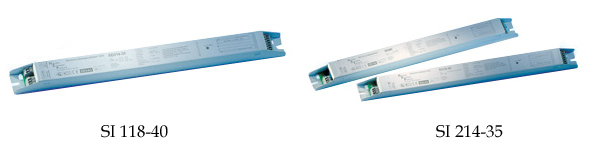

- Model: SI 118-40
- Lamp Type
- T8: 1/2 x 18, 25, 30, 36W
- T5: 1/2 x 24, 39W
- TC-L: 1/2 x 24, 36W
- TC-F: 1/2x 18, 24, 36W
- Rated Voltage: 220~240V, 0/50~60Hz
- Operation Frequency: 40 ~ 100KHz
- Temperature Range: -25 ~ +60°C
- Dimensions: 360 x 30 x 26mm
- Approbations: ENEC / K EMA / CE
- Model: SI 180
- Lamp Type
- T8 (T26): 1 x /2 x 58W
- TC-F: 1 x /2 x 55W (50W)
- Rated Voltage: 220~240V, 0/50~60Hz
- Operation Frequency: >40KHz
- Temperature Range: -25 ~ +60°C
- Dimensions: 360 x 30 x 26mm
- Approbations: ENEC / K EMA / CE
- Model: SI 214-35
- Lamp Type
- T5: 14, 21, 28, 35W
- Rated Voltage: 220~240V, 0/50~60Hz
- Operation Frequency: >40KHz
- Temperature Range: -25 ~ +60°C
- Dimensions: 360 x 30 x 26mm
- Approbations: ENEC / K EMA / CE
- Model: SI 249
- Lamp Type
- T5: 49W
- Rated Voltage: 220~240V, 0/50~60Hz
- Operation Frequency: >40KHz
- Temperature Range: -25 ~ +60°C
- Dimensions: 360 x 30 x 26mm
- Approbations: ENEC / K EMA / CE
- Model: SI 254
- Lamp Type
- T5: 54W
- Rated Voltage: 220~240V, 0/50~60Hz
- Operation Frequency: >40KHz
- Temperature Range: -25 ~ +60°C
- Dimensions: 360 x 30 x 26mm
- Approbations: ENEC / K EMA / CE
- Model: SI 280
- Lamp Type
- T5: 80W
- Rated Voltage: 220~240V, 0/50~60Hz
- Operation Frequency: >40KHz
- Temperature Range: -25 ~ +60°C
- Dimensions: 360 x 30 x 26mm
- Approbations: ENEC / K EMA / CE
Features
- Connection of 1-alternatively 2 lamps possible.
- Warm start of lamp possible in every dimming position.
- Slim style.
- Automatic identification of lamps.
