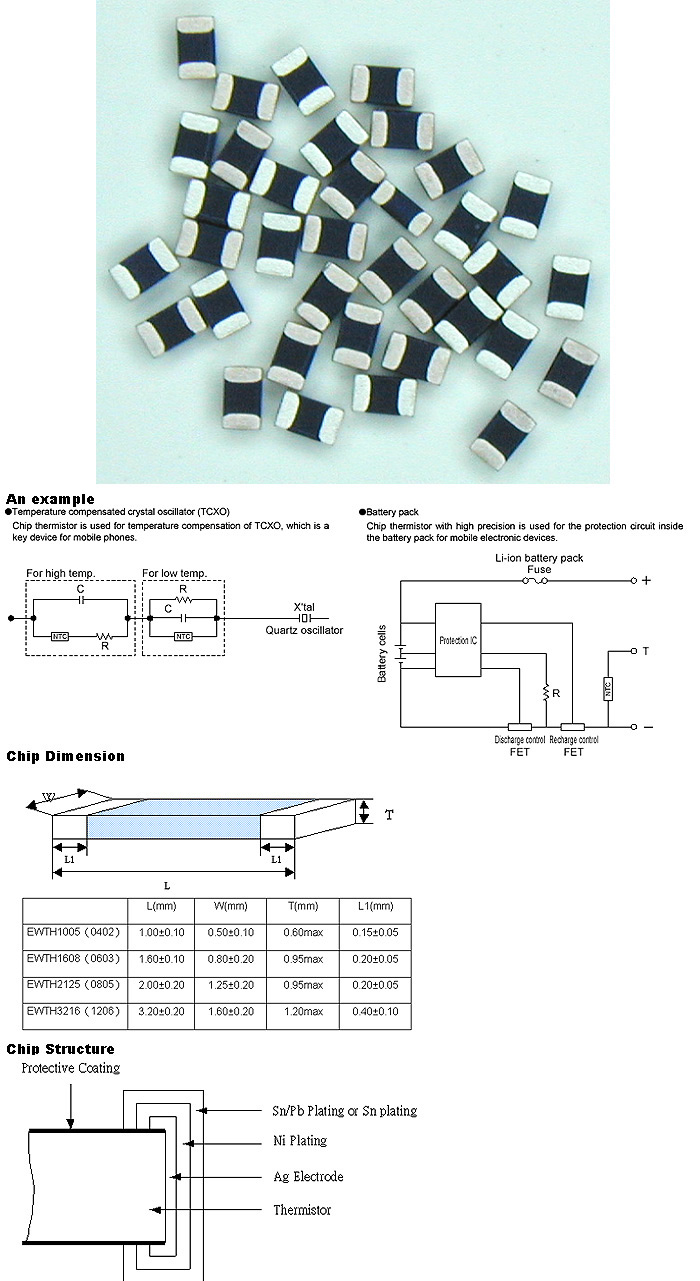

A Thermistor is a thermally sensitive resistor whose primary function is to exhibit a change in electrical resistance with a change in body temperature.
NTC thermistor is one in which the zero-power resistance decreases with an increase temperature.
NTC thermistor is one in which the zero-power resistance decreases with an increase temperature.
Features
- Multilayer structure allows diverse resistance value in the same B constant.
- Ultra small size, low capacitor, high B value.
- Glass coated perform for long term reliability.
- Non polarized for mounting.
- Possibility for Flow / Reflow soldering.
- Applications:
- Temperature compensation for crystal oscillator (TCXO).
- Temperature compensation for Personal computer.
- Temperature detection for CPU and memory device.
- Temperature detection for battery pack.
- Temperature compensation for contrast of LCD.
- Temperature compensation and sensing of car audio equipments. (CD, MD, Tuner).
| Part Number | Resistance (25°C)(k ohm) | B-constant(25-85°C)(k) | Rated ElectricPower (25°C)(mW) | Typical DissipationConstant (25°C)(mW/°C) | OperatingTemperature Range(°C) | |
|---|---|---|---|---|---|---|
| 1005 (0402) Size | EWTH02103_31 | 10 | 3435 | 2.5 | 100 | -40 to 125 |
| 1608 (0603) Size | EWTH03132_3B | 1.32 | 3100 | 3.5 | 100 | -40 to 125 |
| EWTH03302_3D | 3.00 | 3200 | 3.5 | 100 | -40 to 125 | |
| EWTH03472_3G | 4.70 | 3340 | 3.5 | 100 | -40 to 125 | |
| EWTH03682_3I | 6.80 | 3450 | 3.5 | 100 | -40 to 125 | |
| EWTH03103_3I | 10.0 | 3435 | 3.5 | 100 | -40 to 125 | |
| EWTH03103_3K | 10.0 | 3550 | 3.5 | 100 | -40 to 125 | |
| EWTH03103_3T | 10.0 | 3970 | 3.5 | 100 | -40 to 125 | |
| EWTH03123_3K | 12.0 | 3550 | 3.5 | 100 | -40 to 125 | |
| EWTH03303_3R | 30.0 | 3900 | 3.5 | 100 | -40 to 125 | |
| EWTH03333_3R | 33.0 | 3900 | 3.5 | 100 | -40 to 125 | |
| EWTH03403_3S | 40.0 | 3950 | 3.5 | 100 | -40 to 125 | |
| EWTH03473_3S | 47.0 | 3950 | 3.5 | 100 | -40 to 125 | |
| EWTH03493_3S | 49.0 | 3950 | 3.5 | 100 | -40 to 125 | |
| EWTH03503_3S | 50.0 | 3950 | 3.5 | 100 | -40 to 125 | |
| EWTH03513_3S | 51.0 | 3950 | 3.5 | 100 | -40 to 125 | |
| EWTH03683_3S | 68.0 | 3950 | 3.5 | 100 | -40 to 125 | |
| EWTH03104_3S | 100.0 | 3950 | 3.5 | 100 | -40 to 125 | |
| EWTH03154_4A | 150.0 | 4000 | 3.5 | 100 | -40 to 125 | |
| EWTH03374_4A | 370.0 | 4000 | 3.5 | 100 | -40 to 125 | |
| EWTH03404_4B | 400.0 | 4100 | 3.5 | 100 | -40 to 125 | |
| EWTH03504_4B | 500.0 | 4100 | 3.5 | 100 | -40 to 125 | |
| 2012 (0805) Size | EWTH05202_3D | 2.00 | 3200 | 4 | 100 | -40 to 125 |
| EWTH05222_3D | 2.20 | 3200 | 4 | 100 | -40 to 125 | |
| EWTH05472_3I | 4.70 | 3435 | 4 | 100 | -40 to 125 | |
| EWTH05472_3N | 4.70 | 3660 | 4 | 100 | -40 to 125 | |
| EWTH05502_3I | 5.00 | 3435 | 4 | 100 | -40 to 125 | |
| EWTH05103_3I | 10.0 | 3435 | 4 | 100 | -40 to 125 | |
| EWTH05103_3K | 10.0 | 3550 | 4 | 100 | -40 to 125 | |
| EWTH05153_3M | 15.0 | 3630 | 4 | 100 | -40 to 125 | |
| EWTH05223_3R | 22.0 | 3900 | 4 | 100 | -40 to 125 | |
| EWTH05223_4B | 22.0 | 4055 | 4 | 100 | -40 to 125 | |
| EWTH05303_3R | 30.0 | 3900 | 4 | 100 | -40 to 125 | |
| EWTH05333_4B | 33.0 | 4055 | 4 | 100 | -40 to 125 | |
| EWTH05473_4A | 47.0 | 4000 | 4 | 100 | -40 to 125 | |
| EWTH05503_4A | 50.0 | 4000 | 4 | 100 | -40 to 125 | |
| EWTH05563_4A | 56.0 | 4000 | 4 | 100 | -40 to 125 | |
| EWTH05104_4A | 100.0 | 4000 | 4 | 100 | -40 to 125 | |
| 3216 (1206) Size | EWTH06103_3I | 10.0 | 3435 | 4.5 | 100 | -40 to 125 |
