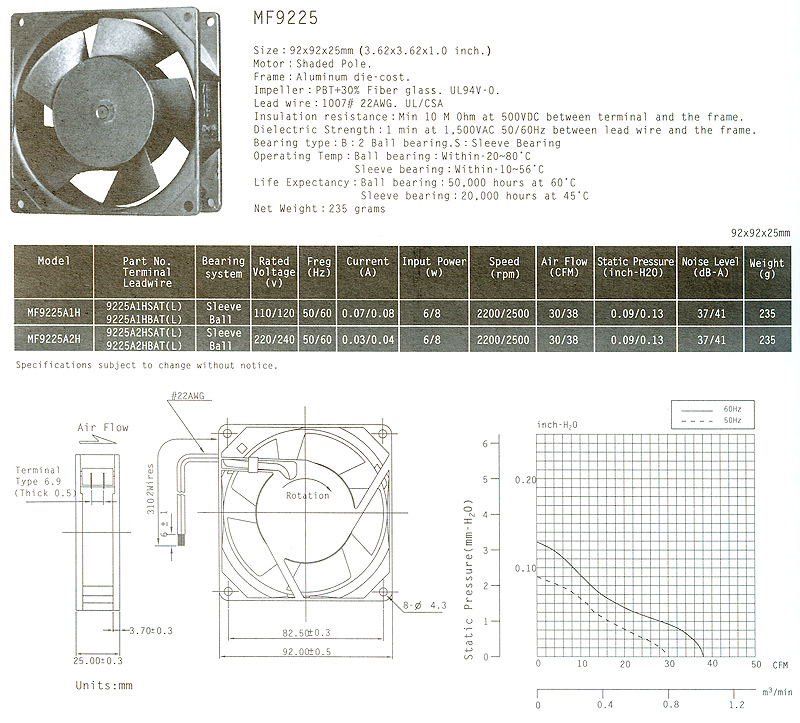

Specifications
- Size
- 92 x 92 x 25mm (3.62 x 3.62 x 1.0inch)
- Motor
- Shaded Pole
- Frame
- Aluminum Die-Cost
- Impeller
- PBT + 30% Fiber Glass. UL94V-0
- Lead Wire
- 1007# 22AWG. UL/CSA
- Insulation Resistance
- Min 10 M 0hm at 500VDC Between Terminal and the Frame
- Dielectric Strength
- 1 min at 1,500VAC 50/60Hz
- Bearing Type
- B: 2 Ball Bearing
- S: Sleeve Bearing
- Operating Temp
- Ball Bearing: Within -20 ~ 80°C
- Sleeve Bearing: Within -10 ~ 56°C
- Life Expectancy
- Ball Bearing: 50,000 hours at 60°C
- Sleeve Bearing: 20,000 hours at 45°C
- Net Weight
- 235 grams
- Keyword
- Axial Fan Motor, Axial AC Fan Motor, DC Brushless Fan Motor, DC Axial Fan Motor, DC Cooling Fan
| Model | Part No. | Bearing System | Rated Voltage | Freg | Current | Input Power | Speed | Air Flow | Static Pressure | Noise Level | Weight |
|---|---|---|---|---|---|---|---|---|---|---|---|
| MF9225A1H | 9225A1HSAT (L), 9225A1HBAT (L) | Sleeve, Ball | 110 / 120 V | 50 / 60 Hz | 0.07 / 0.08 A | 6 / 8 W | 2,200 / 2,500 RPM | 30 / 38 CFM | 0.09 / 0.13 Inch-H2O | 37 / 41 dB-A | 235 g |
| MF9225A2H | 9225A2HSAT (L), 9225A2HBAT (L) | Sleeve, Ball | 220 / 240 V | 50 / 60 Hz | 0.03 / 0.04 A | 6 / 8 W | 2,200 / 2,500 RPM | 30 / 38 CFM | 0.09 / 0.13 Inch-H2O | 37 / 41 dB-A | 235 g |
