Hung Pump Industrial Co., Ltd.
Output: 1/5 - 1 HP, 0.15 - 0.75 KW
Outlet: 50 - 80 mm, 1/2" ~ 3"
Rated: H 4 - 9 (M), Q 100 - 230 (L/M)
Maximum: H 5.7 - 11 (M), Q 170 - 380 (L/M)
Dimension: 415 - 435 L x 155 W x 210 - 260 H (mm)
Weight: 8 - 18 Kgs
well pump,submersible pump,deep well pump
Outlet: 50 - 80 mm, 1/2" ~ 3"
Rated: H 4 - 9 (M), Q 100 - 230 (L/M)
Maximum: H 5.7 - 11 (M), Q 170 - 380 (L/M)
Dimension: 415 - 435 L x 155 W x 210 - 260 H (mm)
Weight: 8 - 18 Kgs
well pump,submersible pump,deep well pump

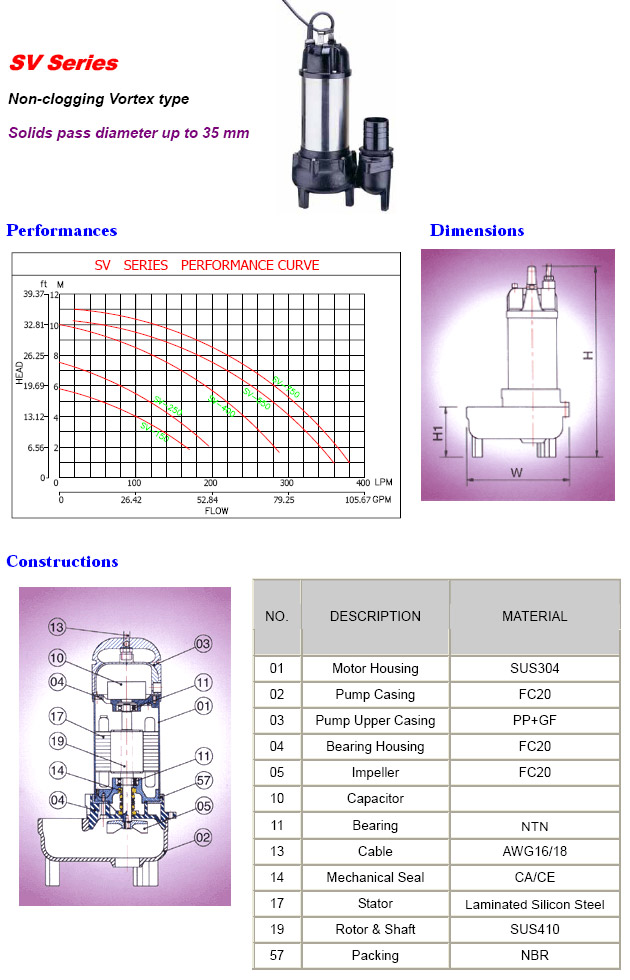

Specifications
- Application
- To irrigate or discharge water from farmland or ponds.
- For use at relay pumping stations or manhole to relay raw water.
- For livestock production facilities, to discharge sewage.
- For use to discharge rainwater.
- Waterfall, fountain, and garden spraying.
- Sump pit, and washed water handling.
| Model No. | Output (HP) / (Kw) | Outlet (mm) / (Inch) | Rated (Head) / (Flow) | Maximum (Head) / (Flow) | Cable | Weight | Dimension H x H1 x W |
|---|---|---|---|---|---|---|---|
| SV-150 | 1/5 HP / 0.15 Kw | 40mm / 1-1/2" | 4.0M / 100 l/m | 5.7M / 170 l/m | 3M | 8 Kg | 415 x 155 x 210mm |
| SV-250 | 1/3 HP / 0.25 Kw | 40mm / 1-1/2" | 4.5M / 120 l/m | 7.5M / 220 l/m | 3M | 9.5 Kg | 415 x 155 x 210mm |
| SV-400 | 1/2 HP / 0.40 Kw | 50mm / 2" | 6.0M / 180 l/m | 10M / 300 l/m | 5M | 12 Kg | 435 x 155 x 240mm |
| SV-550 | 3/4 HP / 0.55 Kw | 80mm / 3" | 8.0M / 200 l/m | 10M / 360 l/m | 5M | 14 Kg | 435 x 155 x 260mm |
| SV-750 | 1 HP / 0.75 Kw | 80mm / 3" | 9.0M / 230 l/m | 11M / 380 l/m | 5M | 18 Kg | 435 x 155 x 260mm |
Main Products
Utility Pumps, Sump Pumps, Sewage Pumps, Contractor Pumps, Well Pumps, Centrifugal Pumps, Gardening, Submersible Pumps, Home Booster, Hydronic Circulator, Plastic Impeller Well Pump, End Suction Chemical Pumps, Electronic Pumps
