Specifications

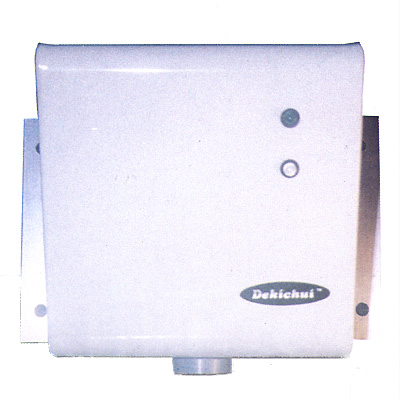

- Model No: AVS-105C
- Power Source/Green On: 110/220 VAC, 12VDC
- Detecting Element: Dual mask semi conductor type
- Response Level by LED indications **meet UL** 2034 standard:
- LED: Yellow On / Yellow Blink / Red Blink
- Level: 35 ~ 50PPM(TLV) / 60~90PPM / Time Delayed(100PPM: 30min, 200PPM: 20min, 300PPM: 15min, 400PPM: 12min, 500PPM: 10min)
- AVS-105C: Relay 1 On / Relay 2 On
- Power Comsumption
- Stand by: less than 2W
- Decont: less then 3W
- Response Time: Within 5 Minutes
- Relay Output:
- for warn.1 & above 100ppm co concentration are available
- 10A 102VAC(UL)/6A 240VAC(TUV) 24VDC Res. Coil: 12VDC
- Ambient Temp
- -10 deg C ~ +50 deg C
- Humidity
- 95%RH
Features
- It meets UL 2034 standard
- Three level of LED appearance
- Two sets of relay out put
- Visual co status indications at the local sensor stations
- Rugged construction suitable for garages, tunnels, public space
