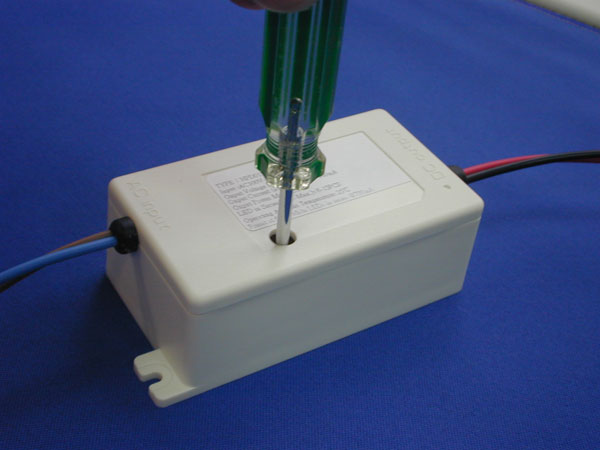

This series is available for driving high power LEDs, and they are constant current drivers which provide high power LED with constant current while operating. This type is adjustable for the current, so we provide more detailed information in the table below. If you have any questions or demands for our products, please feel free and contact us today!
| Parameter | HPD015B-F7040ADJ-CE | HPD015B-F7040 |
|---|---|---|
| Input Voltage | AC90~264V | AC90~264V |
| Input Frequency | 50~60Hz | 50~60Hz |
| Output Voltage Range | 20~40V | 20~40V |
| Output Current Range(adjustable) | TYP: 700mA (Min:100~Max:800mA) | TYP: 700mA (Min:100~Max:800mA) |
| Output Power (Max.) | 28W | 28W |
| 3W White LED in Series(Min.~Max.) | 6~10pcs | 6~10pcs |
| Operating Ambient Temperature | 25°C | 25°C |
| Max Temperature on Heatsink | 90°C | 90°C |
| Dimensions | 103mm(L)*50mm(W)*30mm(H) | 103mm(L)*50mm(W)*30mm(H) |
