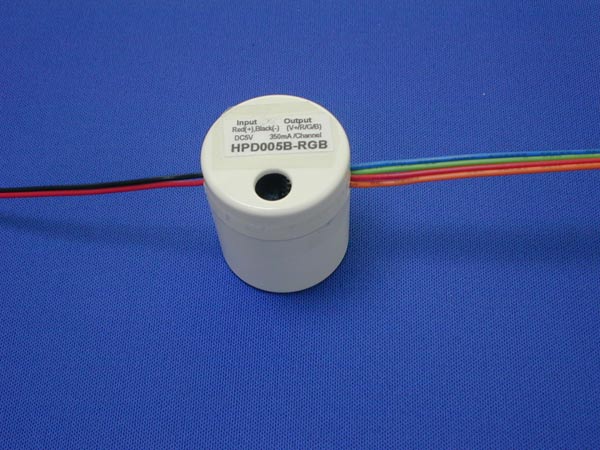

The HPD005B RGB type has DC 5V/1A input and 1 set RGB output. The 1 set program output is freely connected, and the color will be changed in sequence by the LED color changing system. This is widely used in interior lighting for resifential, yacht and decorations for stores or yard.
We also provide series of RGB color changing drivers in different types, and you can see the details in the table below.
We also provide series of RGB color changing drivers in different types, and you can see the details in the table below.
| Part No. | Input Condition | Output | Application (Number of LED) |
|---|---|---|---|
| HPD005B-FADJ | DC5~24V | 3.8~20V/0~1000mA | (1~3)Watt×1pcs@DC5~24V (1~3)Watt×(1~2)pcs@DC9~24V (1~3)Watt×(1~3)pcs@DC13~24V |
| HPD005B-C1-1 | DC5V | 3~4V/350mA | 1Watt×1pcs |
| HPD005B-C1-1-ADJ | DC5V | 3~4V/10~350mA | 1Watt×1pcs/Current adjustable |
| HPD005B-C3-1 | DC5V | 3~4V/700mA | 3Watt×1pcs |
| HPD005B-C3-1-ADJ | DC5V | 3~4V/10~700mA | 3Watt×1pcs/Current adjustable |
| HPD005B-D1-1 | DC12V | 3~4V/350mA | 1Watt×1pcs |
| HPD005B-D1-2 | DC12V | 6~8V/700mA | 1Watt×2pcs |
| HPD005B-D1-3 | DC12V | 9~11.5V/350mA | 1Watt×3pcs |
| HPD005B-D1-4 | DC12V | 12~24V/350mA | 1Watt×(4~6)pcs |
| HPD005B-D1-3-ADJ | DC12V | 9~11.5V/10~350mA | 1Watt×3pcs/Current adjustable |
| HPD005B-D3-1 | DC12V | 3~4V/700mA | 3Watt×1pcs |
| HPD005B-D3-2 | DC12V | 6~8V/700mA | 3Watt×2pcs |
| HPD005B-D3-3 | DC12V | 9~11.5V/700mA | 3Watt×3pcs |
| HPD005B-D3-3-ADJ | DC12V | 9~11.5V/10~700mA | 3Watt×3pcs/Current adjustable |
| HPD005B-D5-1 | DC12V | 6~8V/700mA | 5Watt×1pcs |
| HPD005B-E1-1 | DC24V | 3~4V/350mA | 1Watt×1pcs |
| HPD005B-E1-2 | DC24V | 6~8V/350mA | 1Watt×2pcs |
| HPD005B-E1-3 | DC24V | 9~12V/350mA | 1Watt×3pcs |
| HPD005B-E1-6 | DC24V | 19.2~23V/350mA | 1Watt×6pcs |
| HPD005B-E1-6-ADJ | DC24V | 19.2~23V/10~350mA | 1Watt×6pcs/Current adjustable |
| HPD005B-E3-1 | DC24V | 3~4V/700mA | 3Watt×1pcs |
| HPD005B-E3-2 | DC24V | 6~8V/700mA | 3Watt×2pcs |
| HPD005B-E3-3 | DC24V | 9~12V/700mA | 3Watt×3pcs |
| HPD005B-E3-6 | DC24V | 19.2~23V/700mA | 3Watt×6pcs |
| HPD005B-E3-6-ADJ | DC24V | 19.2~23V/10~700mA | 3Watt×6pcs/Current adjustable |
| HPD005B-E5-1 | DC24V | 6~8V/700mA | 5Watt×1pcs |
| HPD005B-RGB-C | DC5V | 0~250mA | Freely connect 1set High Power RGB output, |
| color changes in sequence. |
