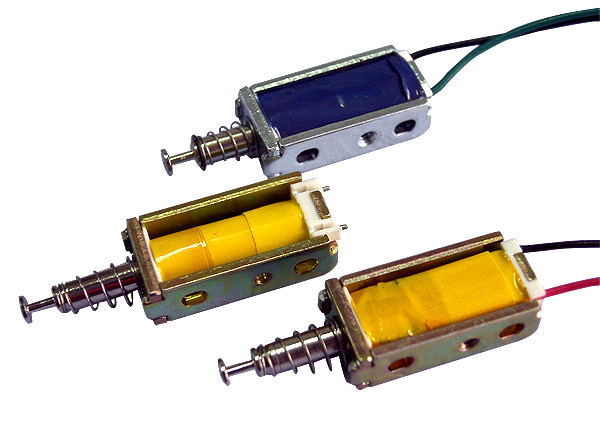

OS-03A open frame solenoid for CD-ROM and DVD-ROM ejection tray.
Specifications
- Rated voltage: 4.2VDC.
- Rated current: 1.1 to 1.3A.
- DC resistance: 3.2 to 3.8 ohms + 10% (at 20 degrees celsius).
- Stroke: 1.7mm.
- Pull force: 95 to 110g (with spring).
- Insulation resistance: 250VDC 50Mohms minimum.
- Dielectric strength: 250VAC 50/60hz for one minute.
- Temperature: 65 degrees celsius maximum.
- Insulation class: A - class.
- Life: 100,000 operation cycles.
- Applications:
- For slim CD-ROM and DVD-ROM ejection trays.
- Primary competitive advantages:
- Experienced technical staff.
- Custom design work is our strength.
- Strict QC.
- Reliable service.
- Prompt delivery.
