Specifications
- Product Name: Spiral 9
- Menbrane Material: EPDM.
- Body Material: PP (Polypropylene)
- Membrane Dia.: 228mm
- Disc Dia.: 265mm
- Diffuser Height: 60mm
- Airflow Range: 1.0 ~ 6.0 m³/hr.
- Bubble Size: 1 ~ 3mm
- Floor Coverage: 5 ~ 25%
- Aeration Area: 0.0375 m²
- Diffuser Weight: 0.7kgs
- Operation Temp.: < 70°C
Features
- Applications:

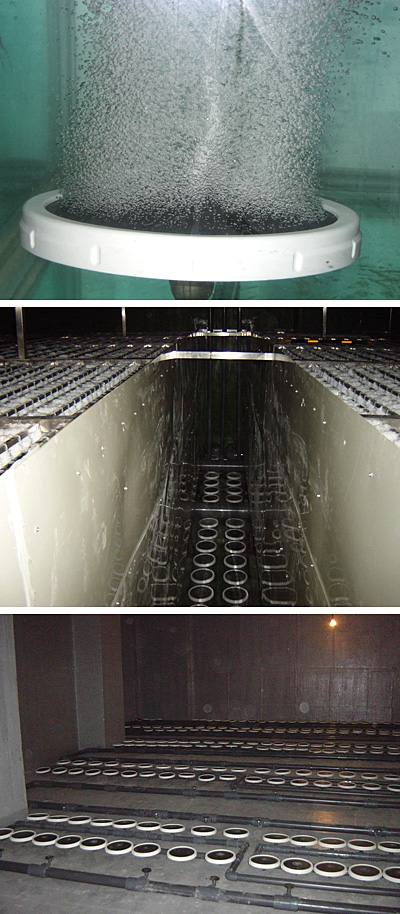

- Aeration for municipal wastewater treatment plants when processing activated sludge treatment, contact oxidization treatment methods.
- Aeration for aerobic processes such as denitrifying phosphorous removal.
- Aeration for excreta and livestock wastewater treatment plants.
- Aeration for deep aeration pool.
- Aeration for high concentration wastewater aeration pool, and for regulation pool of the wastewater treatment plant.
- For pure oxygen aeration.
- Grow-out ponds for aquaculture aeration such as fish and seaweed.
- Air agitation in food processing.
- Ultra high OTE ratio:
- Over 6300 of perfect round bubbles are generated from pores on the EPDM membrane. The strong constructed round bubbles keep their shape in sizes of 1 ~ 3mm, which thoroughly deliver oxygen to fuse into wastewater from pool bottom to the top of it, high amount of oxygen can be therefore transferred into the water.
- Ultra Low Headloss:
- The over 6300 pores are uniformly arrayed in spiral sequence, this results in a very low headloss performance.
- Energy Cost Effect:
- At same oxygen demand, owing the high OTE rate and low headloss, the power of the air blower can be reduced, the operation energy can be hugely reduced.
- Outstanding Lifespan:
- The special selected EPDM membrane has excellent features of tensile strength, elongation, tear strength and chemical / temperature resistance, and specialized forming processes are utilized to guaranty the uniform thickness and structure of the membrane, which can provide longest lifespan.
