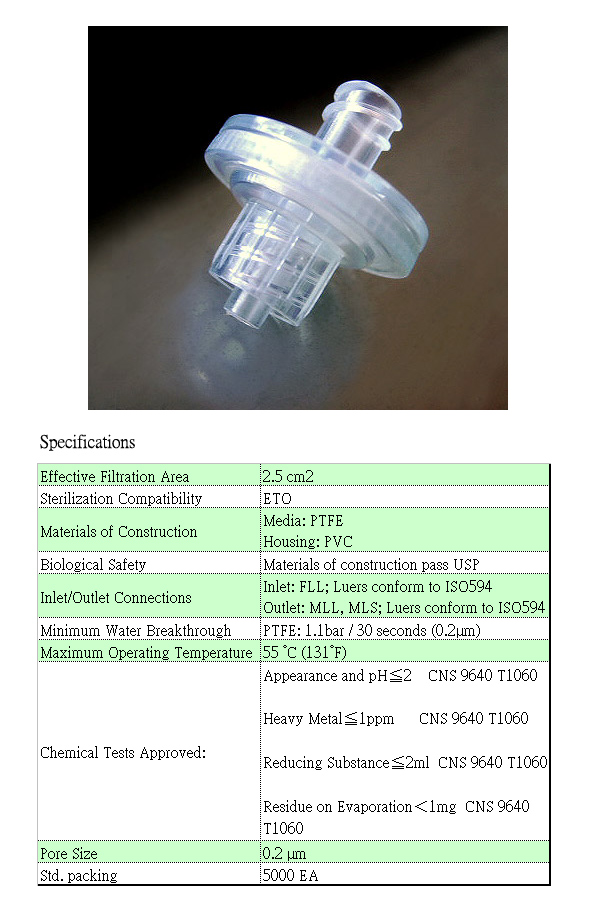

Transducer protector connect blood tubing with dialysis machine. Transducer protector with protective hydrophobic membrane only let sterile air to pass. Transducer protector also prevent blood and dialyzing fluid from damaging sensitive transducer monitoring devices. Transducer protector can protect patients and equipments from cross contamination. The transducer protector of 0.2 micro pore size can remove small-volume microorganism.
Features
- Antibacterial hydrophobic air filter with female luer lock/male luer lock
- Protective hydrophobic barrier allows only sterile air to pass through, protecting patients and equipment from cross contamination
- Choice of media to accommodate sterilization methods
- Colored housings available for identification
- Custom printed blister packaging available
- Housings designed to withstand pneumatic pulsing
| Effective Filtration Area | 2.5 cm2 |
|---|---|
| Sterilization Compatibility | ETO |
| Materials of Construction | Media: PTFE Housing: PVC |
| Biological Safety | Materials of construction pass USP |
| Inlet/Outlet Connections | Inlet: FLL; Luers conform to ISO594 Outlet: MLL, MLS; Luers conform to ISO594 |
| Minimum Water Breakthrough | PTFE: 1.1bar / 30 seconds (0.2µm) |
| Maximum Operating Temperature | 55 °C (131°F) |
| Chemical Tests Approved: | Appearance and pH≤2 CNS 9640 T1060 Heavy Metal≤1ppm CNS 9640 T1060 Reducing Substance≤2ml CNS 9640 T1060 Residue on Evaporation |
