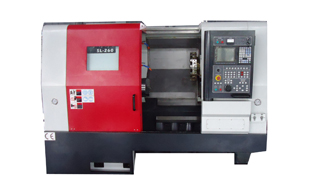

slanted-bed construction ensures high accuracy and high rigidity for heavy-duty cutting;
Unique torque-rib structure provides high rigidity and improve the tool service life;
Transmission with low thermal and low preload ballscrew provide higher rigidity control
1)Suitable of heavy-duty cutting;
2)High rigidity;
3)Programmable tailstock
4)Spindle rigid tapping
Unique torque-rib structure provides high rigidity and improve the tool service life;
Transmission with low thermal and low preload ballscrew provide higher rigidity control
1)Suitable of heavy-duty cutting;
2)High rigidity;
3)Programmable tailstock
4)Spindle rigid tapping
| Description | Unit | DLZ-258 | DLZ-260 | DLZ-360 |
|---|---|---|---|---|
| Max. swing over bed | mm | 600 | 600 | 700 |
| Max. swing over cross slide | mm | 350 | 350 | 400 |
| Distance between centers | mm | 680 | 680 | 680 |
| Max. turning length | mm | 600 | 600 | 600 |
| Max. turning diameter | mm | 350 | 350 | 400 |
| Max. bar diameter | mm | 68 | 75 | 92 |
| Hyd. Chuck diameter | Inch | 8” | 10" | 12" |
| Spindle nose | --- | A2-6 | A2-8 | A2-8 |
| Bearing type | --- | NN3024 | NN3026 | NN3028 |
| Spindle bearing dia. | mm | 120 | 130 | 140 |
| Spindle motor | hp | 25 | 35 | 35 |
| Spindle speed | rpm | 4200 | 3000 | 2000 |
| Number of tools | --- | 10 | 12 | 12 |
| X-axis travel | mm | 175+40 | 175+40 | 225+40 |
| Y-axis travel | mm | 600 | 600 | 600 |
| Floor space | mm | 2650x1750 | 2650x1750 | 2650x1750 |
| Machine weight | kg | 5200 | 5350 | 5600 |
