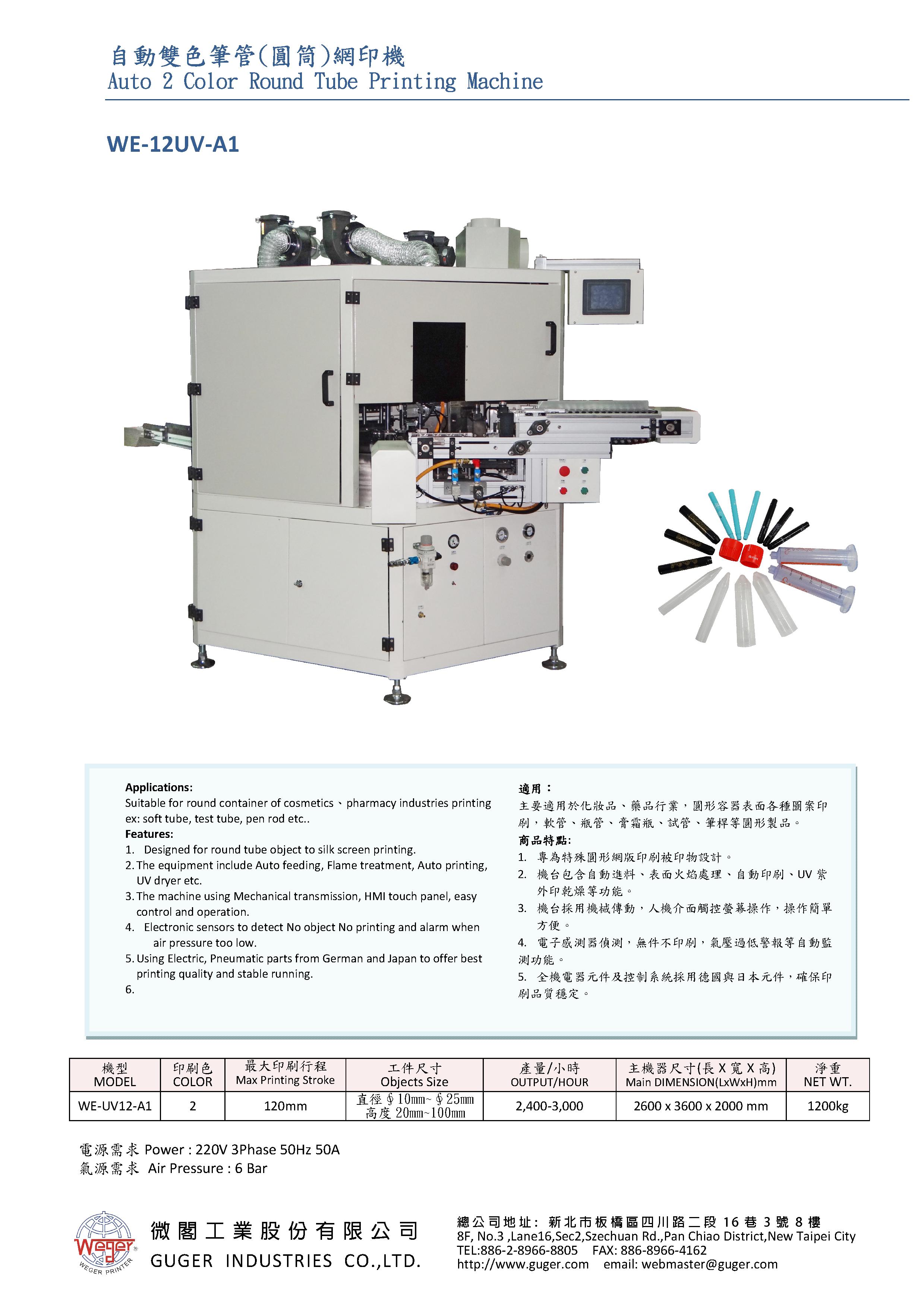

Guger Industries Co., Ltd.
Suitable for round container of cosmetics、pharmacy industries printing ex: soft tube, test tube, pen rod etc..
Specifications
Power : 220V 3Phase 50Hz 50A Air Pressure : 6 BarFeatures
1. Designed for round tube object to silk screen printing. 2. The equipment include Auto feeding, Flame treatment, Auto printing, UV dryer etc. 3. The machine using Mechanical transmission, HMI touch panel, easy control and operation. 4. Electronic sensors to detect No object No printing and alarm when air pressure too low. 5. Using Electric, Pneumatic parts from German and Japan to offer best printing quality and stable running.|
機型 MODEL |
印刷色 COLOR |
最大印刷行程 Max Printing Stroke |
工件尺寸 Objects Size |
產量/小時 OUTPUT/HOUR |
主機器尺寸(長X寬X高) Main DIMENSION(LxWxH)mm |
淨重 NET WT. |
|
WE-UV12-A1 |
2 |
120mm |
直徑∮10mm~∮25mm 高度20mm~100mm |
2,400-3,000 |
2600 x 3600 x 2000 mm |
1200kg |
