Specifications
- Applications:
- For all kinds of plastic containers. (Including cylindrical, oval and flat bottles.)
- Power Consumption : Approx. 5KW 220V, 60HZ, 3PHASES (Without UV Dryer)
- Air Consumption : Approx. 500 1/min
- Gas Consumption : Approx. 3.5 1/min
- Output speed : 2,500 - 3,000 cycles / hr
- Article Length : 30 ~ 300 (mm)
- Round Printing (Article Dimension / Image Length) : Max. 100 / Max. 320 (mm)
- Oval Printing (Width / Height / Radius) : 20 ~ 180 / 20 ~ 120 / 30 ~ 220 (mm)
- Flat Printing (Width / Height) : MAX.160 / MAX.120 (mm)
- Machine Dimensions (L x W x H) : 5,100 x 1,550 x 2,000 (mm)
- Machine Weight : Approx. 3,950 kgs
Features

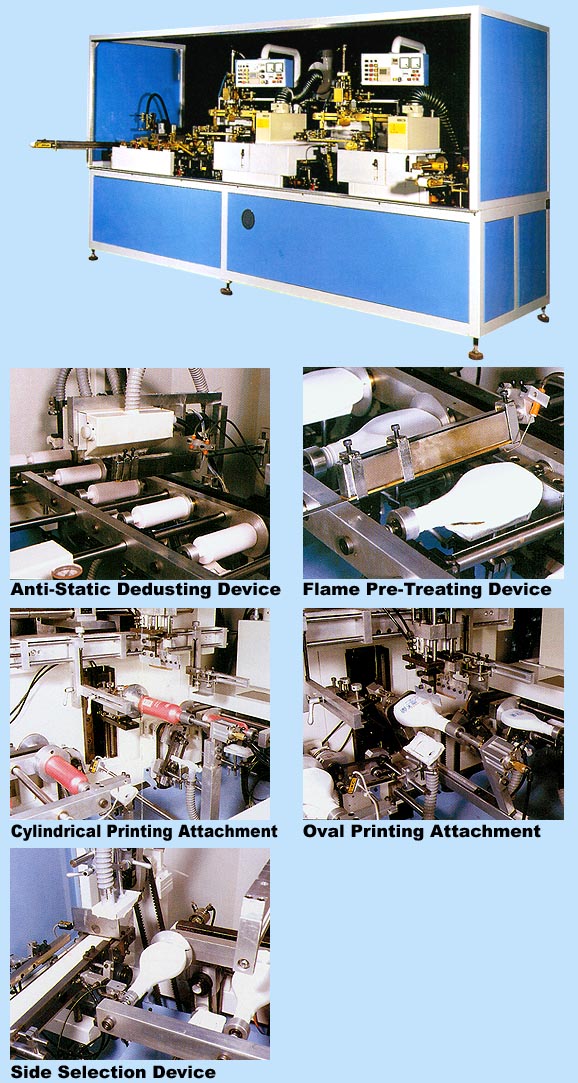

- WE1-400TR is a universal automatic screen printing machine for all kinds of bottle shapes (including cylindrical, oval and flat bottles). This prototype module is designed as the basic for multi-color screen printers, it can ensure high quality, best performance and reliable output of multi-color printings with minimum running cost.
- Multi-colour lines are available upon request.
