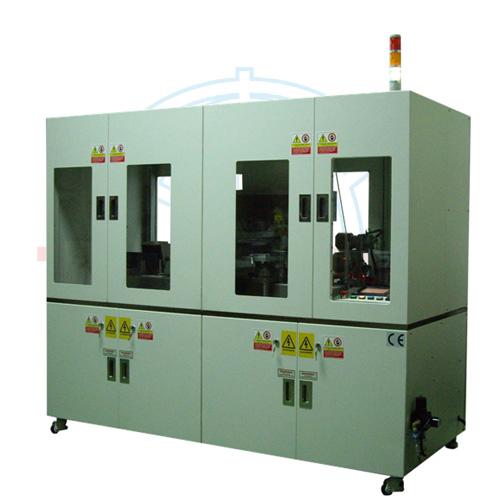

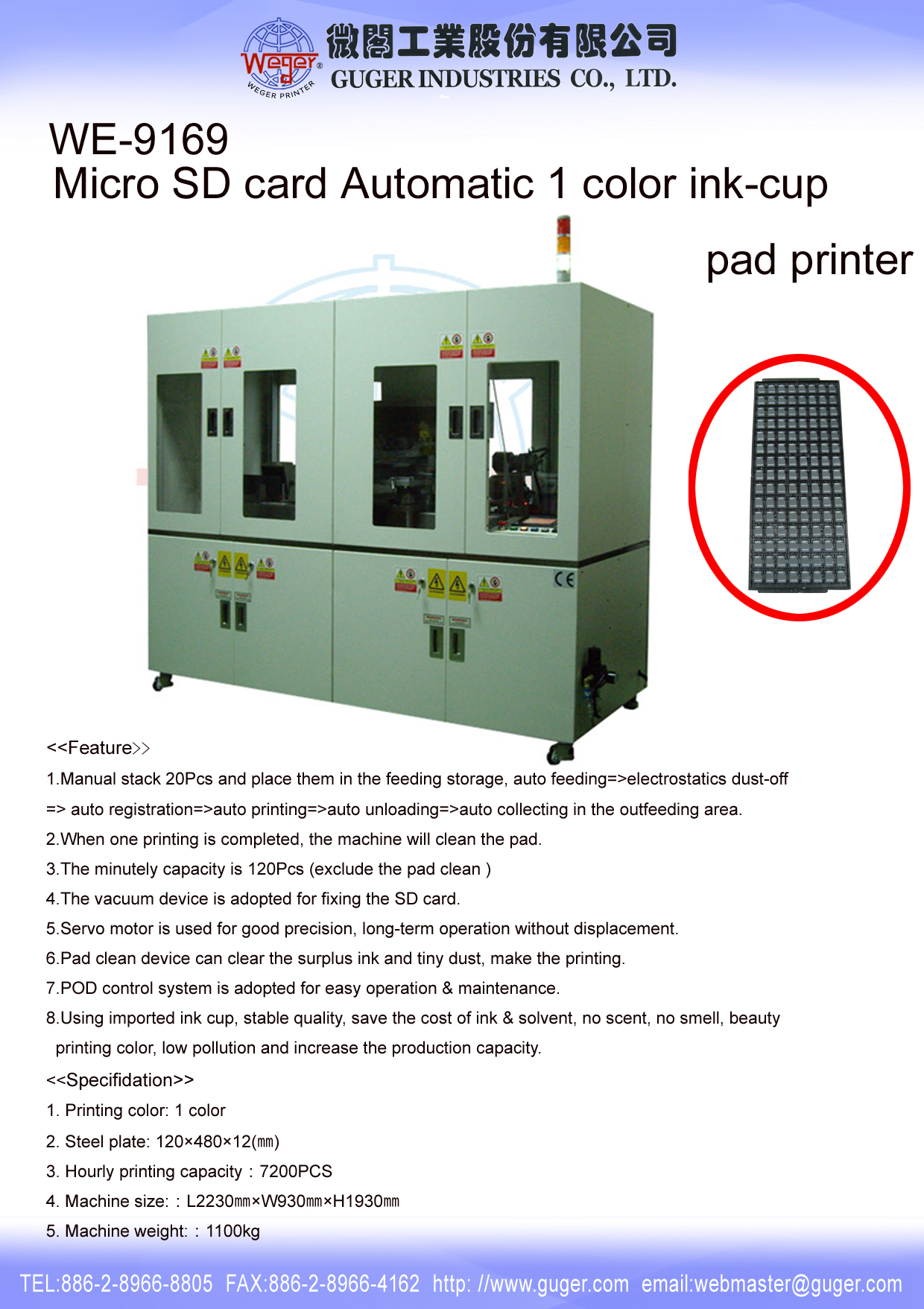

Micro SD card automatic 1 color ink-cup pad printer
Product ID: WE-9169
Send Inquiry
Specifications
Printing color: 1 color
Steel plate: 120×480×12(㎜)
Hourly printing capacity：7200PCS
Machine size：L2230㎜×W930㎜×H1930㎜
Machine weight：1100kg
Features
Manual stack 20Pcs and place them in the feeding storage, auto feeding=>electrostatics dust-off=> auto registration=>auto printing=>auto unloading=>auto collecting in the outfeeding area
When one printing is completed, the machine will clean the pad.
The minutely capacity is 120Pcs (exclude the pad clean )
The vacuum device is adopted for fixing the SD card.
Servo motor is used for good precision, long-term operation without displacement.
Pad clean device can clear the surplus ink and tiny dust, make the printing.
POD control system is adopted for easy operation & maintenance.
Using imported ink cup, stable quality, save the cost of ink & solvent, no scent, no smell, beauty printing color, low pollution and increase the production capacity.
