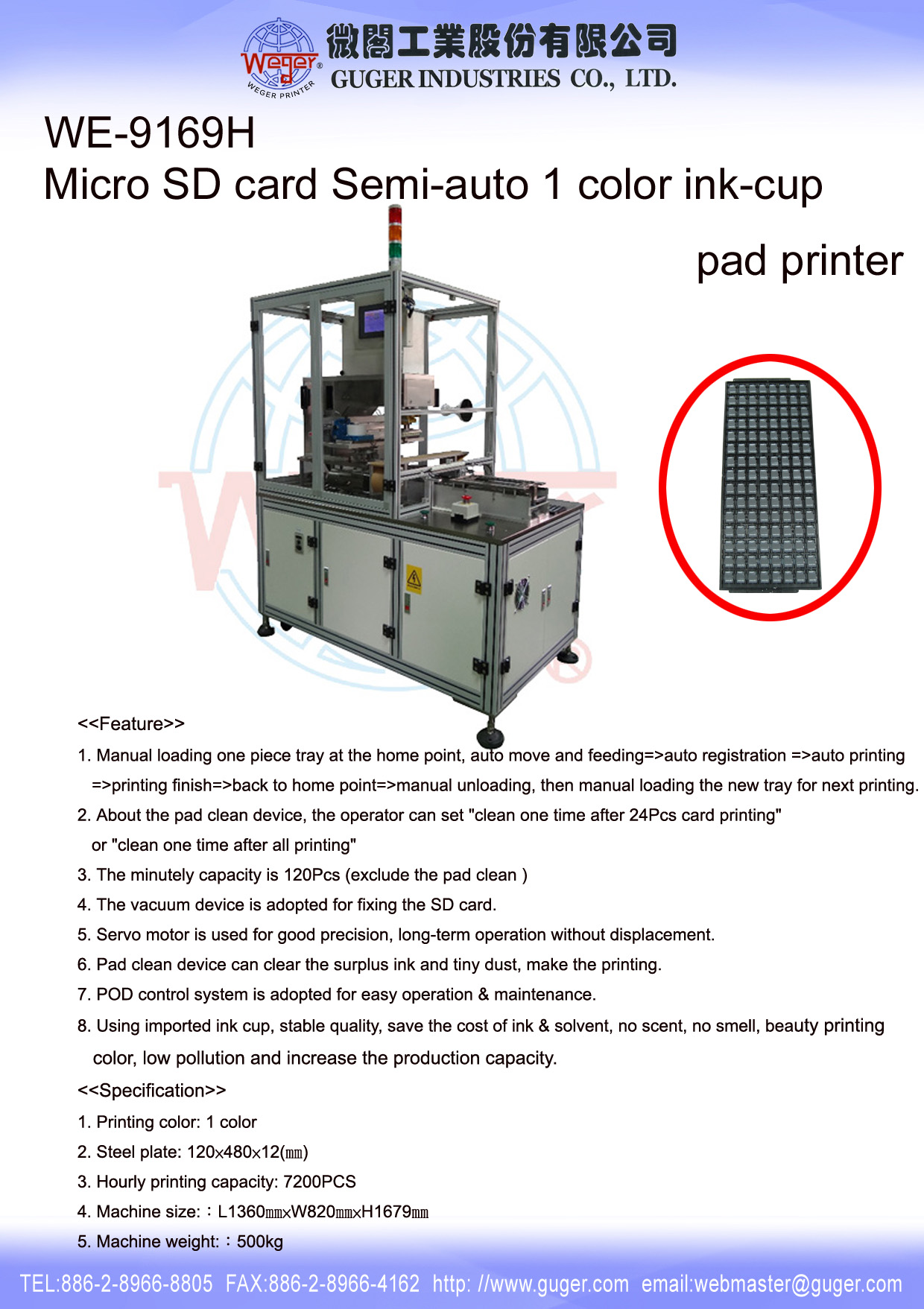

Mirco SD card semi-auto 1 color ink-cup pad printer
Product ID: WE-9169H
Send Inquiry
Specifications
Printing color: 1 color
Steel plate: 120×480×12(㎜)
Hourly printing capacity: 7200PCS
Machine size：L1360㎜×W820㎜×H1679㎜
Machine weight：500kg
Features
Manual loading one piece tray at the home point, auto move and feeding=>auto registration=>auto printing=>printing finish=>back to home point=>manual unloading, then manual loading the new tray for next printing.
About the pad clean device, you can set "clean one time after 24Pcs card printing" or "clean one time after all printing"
The minutely capacity is 120Pcs (exclude the pad clean )
The vacuum device is adopted for fixing the SD card.
Servo motor is used for good precision, long-term operation without displacement.
Pad clean device can clear the surplus ink and tiny dust, make the printing.
POD control system is adopted for easy operation & maintenance.
Using imported ink cup, stable quality, save the cost of ink & solvent, no scent, no smell, beauty printing color, low pollution and increase the production capacity.
Main Products
Screen Printers, Pad Printers, Hot Stamping, Screen Printers Equipment, Stencil Maker
Guger Industries Co., Ltd.
