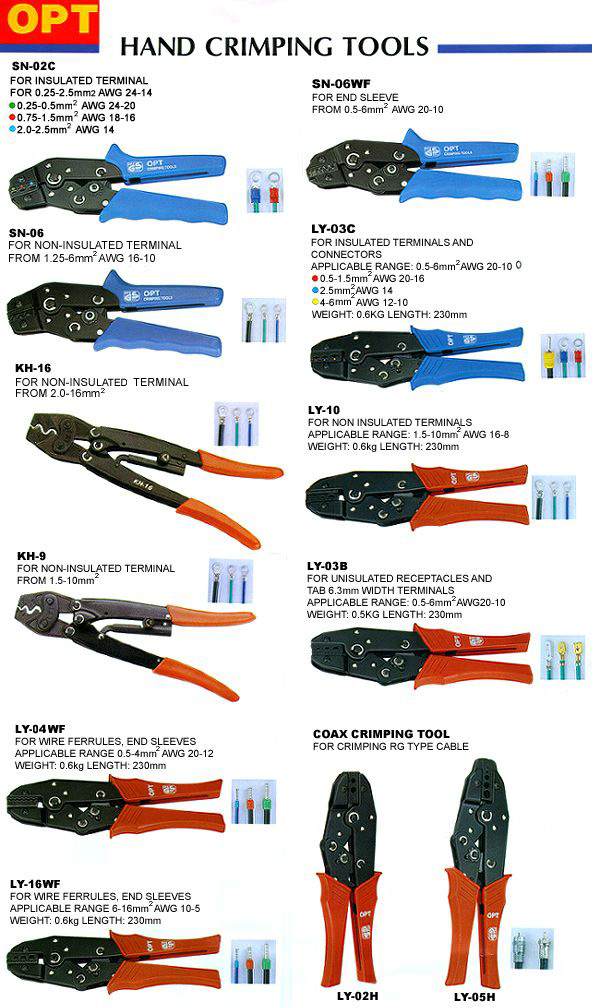

SN-02C hand ratchet crimping tools for crimping insulated terminal from (0.25-2.5mm)^2 AWG 24-14.
Specifications
- SN-02C
- For insulated terminal from 0.25-2.5mm^2 AWG 24-14.
- 0.25-0.5mm^2 AWG 24-14.
- 0.75-1.5mm^2 AWG 18-16.
- 2.0-2.5mm^2 AWG 14.
- SN-06WF
- For end sleeve from 0.5-6mm^2 AWG 20-10.
- SN-06
- For non-insulated terminal from 1.25-6mm^2 AWG 16-10.
- KH-16
- Applicable range (JIS mm^2): 2 / 5.5 / 8 / 14
- Applicable range (DIN mm^2): 2.0 / 6 / 10 / 16
- Weight(kg): 0.6
- Length(mm): 270
- KH-9
- Applicable range (JIS mm^2): 1.25 / 2 / 5.5 / 8
- Applicable range (DIN mm^2): 1.5 / 2.0 / 6 / 10
- Weight(kg): 0.6
- Length(mm): 250
- LY-03C
- For insulated terminals and connectors.
- Applicable range: 0.5-6 mm^2 AWG 20-10.
- 0.5-1.5mm^2 AWG 20-16.
- 2.5mm^2 AWG 14.
- 4-6mm^2 AWG 12-10.
- Weight: 0.6kg
- Length: 230mm
- LY-10
- For non insulated terminals.
- Applicable range: 1.5-10mm^2 AWG 16-8
- Weight: 0.6kg
- Length: 230mm
- LY-03B
- For unisulated receptacles and TAB 6.3mm width terminals.
- Applicable range: 0.5-6mm^2 AWG 20-10
- Weight: 0.6kg
- Length: 230mm
- LY-04WF
- For wire ferrules, end sleeves.
- Applicable range: 0.5-4mm^2 AWG 20-12
- Weight: 0.6kg
- Length: 230mm
- LY-16WF
- For wire ferrules, end sleeves.
- Applicable range: 6-16mm^2 AWG 10-5
- Weight: 0.6kg
- Length: 230mm
Features
.Sample Purchase.Main Products
crimping tools, cable cutters, cable strippers, hydraulic tools, battery crimping tool, battery cable cutter, fish tape
