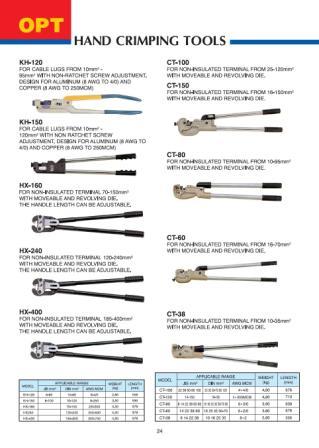

KH-120 hand crimping tools for crimping cable lugs from 10-95mm^2.
Specifications
- KH-120
- For terminating cable lugs from 10mm^2 - 95mm^2 with non-ratchet screw adjustment.
- Design for aluminum (8 AWG to 4/0) and copper (8 AWG to 250 MCM).
- HX-240
- For non-insulated terminals 120-240 mm^2 with moveable and revolving die.
- The handle length can be adjustable.
- CX-1B
- For terminating cable lugs from 25mm^2-300mm^2 hexagon crimping (standard copper terminal).
- KH-185B
- For terminating cable lugs from 10mm^2-185mm^2 hexagon crimping (standard copper terminal).
- KH-325B
- For terminating cable lugs from 35mm^2-400mm^2 hexagon crimping (standard copper terminals).
- KH-170
- For terminating cable lugs from 10mm^2-150mm^2 with non ratchet screw adjustment.
- Design for aluminum (AWG 8 to 250 MCM) and copper (AWG 8 to 300 MCM).
- Weight: 3.8kg
- Length: 660mm
- HX-25B
- For non-insulated terminal (6mm^2-25mm^2)(standard type terminal).
- HX-50B
- For terminating cable lugs from 6mm^2-50mm^2 hexagon crimping with moveable and revolving dies.(standard type terminal)
- HX-120B
- For terminating cable lugs from 10mm^2-120mm^2 hexagon crimping with moveable and revolving dies.(standard copper terminal)
- HX-150B
- For terminating cable lugs from 25mm^2-150mm^2 hexagon crimping with moveable and revolving dies.(standard copper terminal)
Main Products
crimping tools, cable cutters, cable strippers, hydraulic tools, battery crimping tool, battery cable cutter, fish tape
