To keep oil temperature from being hot-swelling and cold-shrinking incidence and stay in a stable condition, the machine is installed with compressor cooling system to reinforce the iubrication circulation. There's a warning signal in case of low greasing gauge.
The adopted electrical parts are generally used in the world and are easy to change and repair, which are installed with electrical-voltage stabilized to protect automatic controlling device from damage caused by voltage fluctuations.
The automatic auxiliary paper-receiving stand is operated without stopping machine, which is the patent approved in Taiwan & China.
Moreover, thick papers, operated by push and thin papers by pull are also new patent in Taiwan & China.
The adopted electrical parts are generally used in the world and are easy to change and repair, which are installed with electrical-voltage stabilized to protect automatic controlling device from damage caused by voltage fluctuations.
The automatic auxiliary paper-receiving stand is operated without stopping machine, which is the patent approved in Taiwan & China.
Moreover, thick papers, operated by push and thin papers by pull are also new patent in Taiwan & China.
Specifications
- Size:
- SF-T110NP-(L)4673 x (W) 2750 x (H) 1925 mm

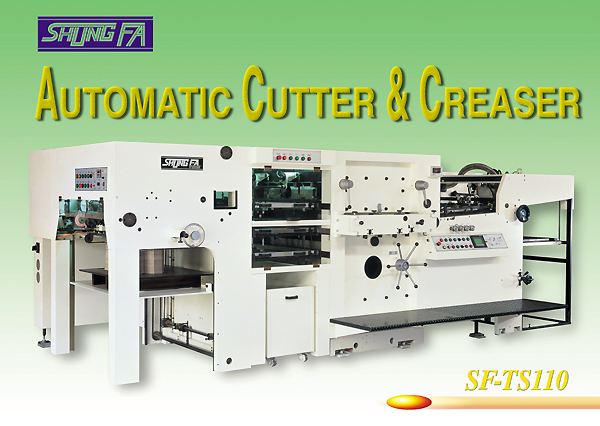

- SF-TS110-(L)6000 x (W) 2750 x (H) 1925 mm
- Weight:
- SF-T110NP-16.5 tons
- SF-TS110-18.5 tons
- Materials: FCD-55 (ball-sized castiron)
- Maximum sheet size: 1040 x 740 mm
- Maximum cutting size: 1030 x 730 mm
- Minimum cutting size: 540 x 335 mm
- Thickness of cutting paper:0.3~3mm
- Maximum cutout movements:6000 sheets/hour
- Cutting pressure:300tons
Main Products
automatic cutter creaser
