Main Applications: Furniture, home care, fitness equipment etc.

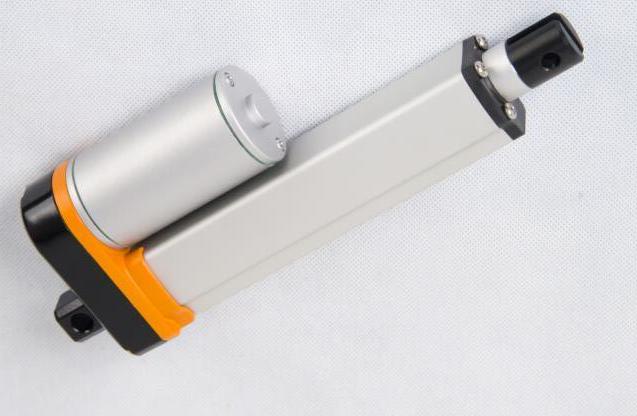

Model: LA1
Input Voltage: 12VDC/24VDC/36VDC/48VDC
Max. Load: 1200N (PUSH/PULL)
Max. Current: 2.5A@12VDC 1.5A@24VDC
Max. Speed: 60mm/sec @No load
Stroke: 30-600mm (Customized)
Duty Cycle:25% or 5 min. continuous use
IP Grade: IP66
Operating Temperature: -40℃~70℃
Color: Gray or Yellow
Certificate: CE
Noise Level: ≦ 55dB
Limit Switch: Preset
Optional Features: Hall Sensor ( *1, *2) Or Rheostat Sensor
Input Voltage: 12VDC/24VDC/36VDC/48VDC
Max. Load: 1200N (PUSH/PULL)
Max. Current: 2.5A@12VDC 1.5A@24VDC
Max. Speed: 60mm/sec @No load
Stroke: 30-600mm (Customized)
Duty Cycle:25% or 5 min. continuous use
IP Grade: IP66
Operating Temperature: -40℃~70℃
Color: Gray or Yellow
Certificate: CE
Noise Level: ≦ 55dB
Limit Switch: Preset
Optional Features: Hall Sensor ( *1, *2) Or Rheostat Sensor
