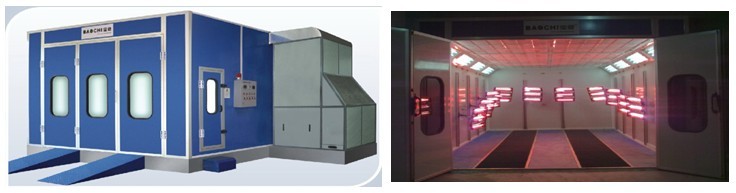

Outside size(L*W*H) 7000*5550*3450 mm
Inside size(L*W*H) 6880*3880*2750 mm
Gate size(L*W) 3000*2700 mm
Total power 39.3KW
Room System:
1) Wall board: EPS filled board, 60mm thick;
2)Basement: Galvanized steel sheet;
3)Car Slope: anti-skid steel plates.
Air Circulation System:
1) air-intake:2 set of YDW 4.0kw centrifugal fan,total capacity:26000m3/h;
2) air-exhuast(optional): 1 set of YDW 4.0kw centrifugal fan,capacity:13000m3/h, low noise, bigcapacity, energy-saving;
3) 1 pcs of 10N automotive damper acuator from spraying to baking cycle;
4) work area: galvanized board;
5) full air speed 0.25~0.35m/s;air exchange rate 280times/h;noise less than 80db(a).
Lighting System:
1) Ceiling light: 24pcs of 36w high-quality Lamps;
2) wall board high-quality light(Optional): 16pcs of 36w high-quality lamps, Lumination more than1000Lux.
Purification System:dual filtering structure
Heating System:10 groups of short wave infrared baking lights.
Controlling system
Inside size(L*W*H) 6880*3880*2750 mm
Gate size(L*W) 3000*2700 mm
Total power 39.3KW
Room System:
1) Wall board: EPS filled board, 60mm thick;
2)Basement: Galvanized steel sheet;
3)Car Slope: anti-skid steel plates.
Air Circulation System:
1) air-intake:2 set of YDW 4.0kw centrifugal fan,total capacity:26000m3/h;
2) air-exhuast(optional): 1 set of YDW 4.0kw centrifugal fan,capacity:13000m3/h, low noise, bigcapacity, energy-saving;
3) 1 pcs of 10N automotive damper acuator from spraying to baking cycle;
4) work area: galvanized board;
5) full air speed 0.25~0.35m/s;air exchange rate 280times/h;noise less than 80db(a).
Lighting System:
1) Ceiling light: 24pcs of 36w high-quality Lamps;
2) wall board high-quality light(Optional): 16pcs of 36w high-quality lamps, Lumination more than1000Lux.
Purification System:dual filtering structure
Heating System:10 groups of short wave infrared baking lights.
Controlling system
