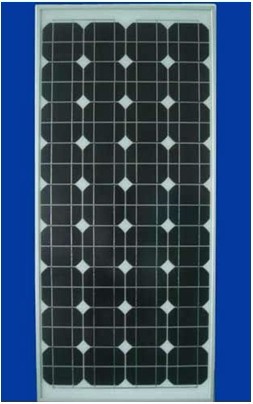

150W high efficiency monocrystalline solar panel 125*125

Specificationshot photovoltic sharp solar panel 150W
1.Easy installation
2.aluminum alloy frame
3.IEC61215,IEC61730;

hot photovoltic sharp solar panel 150W
Maximum power at STC(Pmax) : 150W
Optimum operating voltage(Vmp) : 34.4V
Optimum operating current(Imp) :4.36A
Open-circuit voltage(Voc): 43.2V
Short-circuit current(Isc) :4.85A
Short-circuit current temperature coefficient : (0.065+/-0.015)%/celsius degree
Open-circuit voltage temperature coefficient: -(80+/-10)MV/celsius degree
Peak power temperature coefficient:-(0.5+/-0.05)%/ celsius degree
NOCT: 47+/-2/celsius degree
Operating temperature:-40/celsius degreeTO 85/celsius degree
Maximum system voltage:600V DC
Power tolerance:+/-3%

1.STC: lrradiance 1000W/m2,Module temperature 25,AM=1.5
2.Nominal 24V DC standard output.
3.High efficiency, good quality.
4.High transmission tempered glass.
5.TPT imported from Krempel, Germany
6.Rugged design to withstands high wind pressure and snow load, easy installation.
7.Aesthetic appearance.
8.Design to meet unique demand of customers.
9.25 years module output warranty.
10.Built-in diode prevents reverse charging.
