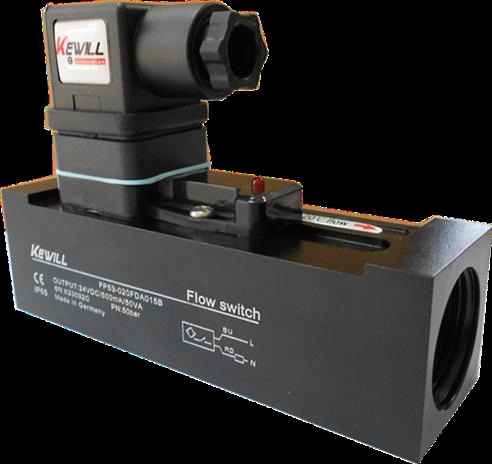

Basic info:
It is the gas-liquid dual-purpose type.On-line installation, mechanical type.
Features
1.Minimal pressure loss,good repeatability, dirt-resistance
2.Mechanical and the electronic part completely isolated 3.With Set dial gauge and easy to set,uses no need set in the scene
4.LED display switch state, big switch capacity
5.A variety of materials and voltage level selection
OVERVIEW
Suitable medium: water, ethylene glycol, oil based liquid, air.
Max. working pressure of 200 bar.
Medium temperature -10...160 C.Source: DC24V AC220V AC380V.Protection level IP65.
Suitable diameter DN8 ~ DN32
Optional material: POM plastic, anodized aluminum, bronze, stainless steel 316L
Flow alarm setting value from 0.1L to 70L/min
It is the gas-liquid dual-purpose type.On-line installation, mechanical type.
Features
1.Minimal pressure loss,good repeatability, dirt-resistance
2.Mechanical and the electronic part completely isolated 3.With Set dial gauge and easy to set,uses no need set in the scene
4.LED display switch state, big switch capacity
5.A variety of materials and voltage level selection
OVERVIEW
Suitable medium: water, ethylene glycol, oil based liquid, air.
Max. working pressure of 200 bar.
Medium temperature -10...160 C.Source: DC24V AC220V AC380V.Protection level IP65.
Suitable diameter DN8 ~ DN32
Optional material: POM plastic, anodized aluminum, bronze, stainless steel 316L
Flow alarm setting value from 0.1L to 70L/min
