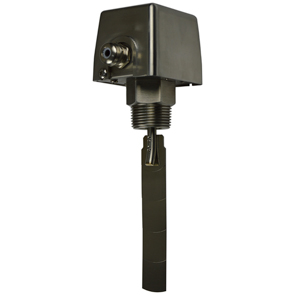

GENERAL CHARACTERISTICS
1.Minimal pressure loss, good repeatability, dirt-resistance
2.Through the knob to achieve accurate switch setting.
3.Hermetic separation of mechanical.
4.At the time of delivery is accompanied by 5 baffle plates, on the large diameter pipeline with low velocity or not full,the user can flexibly use according to the actual situation.
5.The same kind of switch can be used for various pipeline.
OVERVIEW
Brass (stainless steel).The baffle sheet, corrugated pipe, support and other internal components for stainless steel.Suitable medium: water, oil, air, ethylene glycol solution. Max.working pressure of 40 bar. Medium temp.-30...350 C. Power supply: 250V, 3A. Protection class IP54. interface NPT1" &G1/2, suitable diameter 1 "-8", the plug-in connection can provide a flange type & thread connection type.
1.Minimal pressure loss, good repeatability, dirt-resistance
2.Through the knob to achieve accurate switch setting.
3.Hermetic separation of mechanical.
4.At the time of delivery is accompanied by 5 baffle plates, on the large diameter pipeline with low velocity or not full,the user can flexibly use according to the actual situation.
5.The same kind of switch can be used for various pipeline.
OVERVIEW
Brass (stainless steel).The baffle sheet, corrugated pipe, support and other internal components for stainless steel.Suitable medium: water, oil, air, ethylene glycol solution. Max.working pressure of 40 bar. Medium temp.-30...350 C. Power supply: 250V, 3A. Protection class IP54. interface NPT1" &G1/2, suitable diameter 1 "-8", the plug-in connection can provide a flange type & thread connection type.
