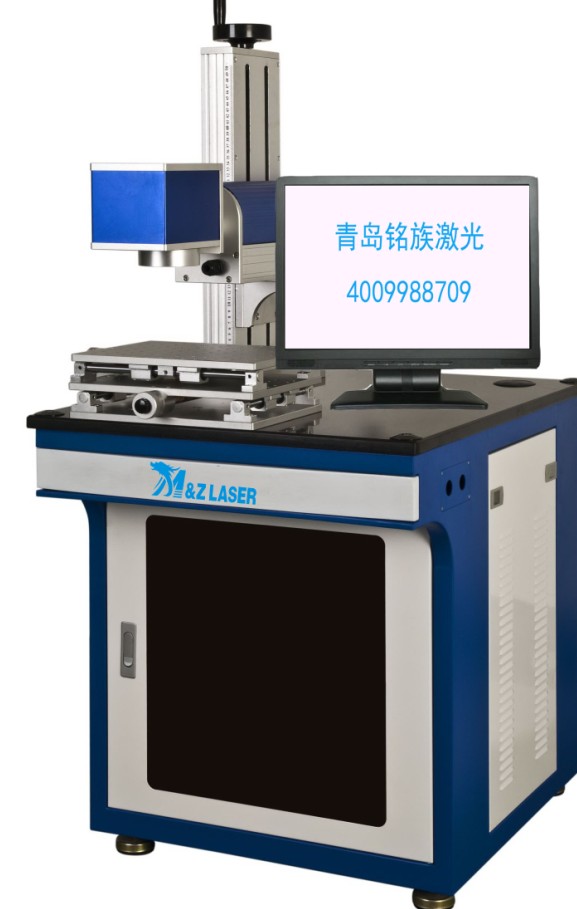

Semi-conductor End-pump laser marking machine for Electronic & communication products, Graphics, text, handicraft With CE & ISO 9001 Certificate
Semi-conductor End-pump laser marking machine for Electronic & communication products, Graphics, text, handicraft With CE
Product ID: MZ-EP10W/20W
Send Inquiry
Specifications:
Type of Machine Semi-conductor End-pump laser
Product model MZ-EP10W MZ-EP20W
working medium Nd:YAG
Laser Wavelength 1064nm
laser power 10W 20
Modulating frequency 0.5KHz—100KHz
Marking Range: 110mm×110mm 175mm×175mm 210mm×210mm
Repetition Precision ±0.002
Marking mode static or dynamic
Minimum Character 0.025mm
Lifting way of working
table Manual or automatic
Travel of table X:150mm Y: 90mm
Machine power supply 220V 50Hz 20A
Cooling method water-cooling
Power of the Whole Equipment 2.5KW
working conditions temperature：13℃～29℃, humidity：5%～75%, free of dust and well ventilated
Overall dimension 760×720×750mm
Machine weight 100Kg
Our after- sale service:
We have one year guarantee for the machine and 3 months guarantee for consumables. We will provide an "Instruction Book", "Operation Manual" and "Training Video" (in English version) to you, which is easily understood and handle by the customer
Type of Machine Semi-conductor End-pump laser
Product model MZ-EP10W MZ-EP20W
working medium Nd:YAG
Laser Wavelength 1064nm
laser power 10W 20
Modulating frequency 0.5KHz—100KHz
Marking Range: 110mm×110mm 175mm×175mm 210mm×210mm
Repetition Precision ±0.002
Marking mode static or dynamic
Minimum Character 0.025mm
Lifting way of working
table Manual or automatic
Travel of table X:150mm Y: 90mm
Machine power supply 220V 50Hz 20A
Cooling method water-cooling
Power of the Whole Equipment 2.5KW
working conditions temperature：13℃～29℃, humidity：5%～75%, free of dust and well ventilated
Overall dimension 760×720×750mm
Machine weight 100Kg
Our after- sale service:
We have one year guarantee for the machine and 3 months guarantee for consumables. We will provide an "Instruction Book", "Operation Manual" and "Training Video" (in English version) to you, which is easily understood and handle by the customer
Certificate
- CE
Main Products
laser marking Cutting and welding machines, Pneumatic marking machines
