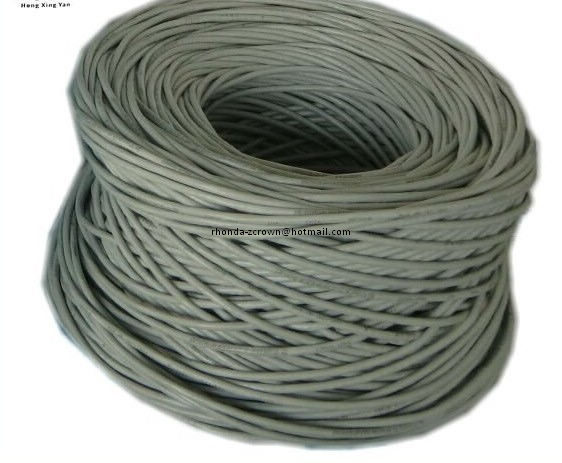

cat5e cable
copper cable cat5e
(Rhonda@z-crown.com)
1.Conductor:24AWG,bare copper 0.51 +/-0.01 mm,
2.Insulation: High density polyethylene, minimum thickness of 0.19 mm 3.Conductor diameter 0.92 +/- 0.02 mm
4. twisted pairs are covered with PVC jacket (minimum thickness of the shell0.5 mm)
5.The external cable diameter of 5.6 +/- 0.2 mm
6. bending radius: 8xO during installation, 6xO with vertical
7.Cabling, 4xO the horizontal cabling
8.Standard packing: 41 x 35x 35cm(W x H x D) - 305 m
9.Weight without cable, weight: 12kg
10.Cable Weight with packaging: 15 kg
11.Operating temperature: -40 C -+75 C
12.Conductor resistance at 20 C 9.38 ohm/100 m
13.DC Resistance Unbalance 5%
14.Capacitive unbalance pair to ground 330 pF/100m
15.Impedance 0.772-100 MHz 85-115 Ohm
16.Maximum working capacity of 5.6 nF / m
(Rhonda@z-crown.com)
1.Conductor:24AWG,bare copper 0.51 +/-0.01 mm,
2.Insulation: High density polyethylene, minimum thickness of 0.19 mm 3.Conductor diameter 0.92 +/- 0.02 mm
4. twisted pairs are covered with PVC jacket (minimum thickness of the shell0.5 mm)
5.The external cable diameter of 5.6 +/- 0.2 mm
6. bending radius: 8xO during installation, 6xO with vertical
7.Cabling, 4xO the horizontal cabling
8.Standard packing: 41 x 35x 35cm(W x H x D) - 305 m
9.Weight without cable, weight: 12kg
10.Cable Weight with packaging: 15 kg
11.Operating temperature: -40 C -+75 C
12.Conductor resistance at 20 C 9.38 ohm/100 m
13.DC Resistance Unbalance 5%
14.Capacitive unbalance pair to ground 330 pF/100m
15.Impedance 0.772-100 MHz 85-115 Ohm
16.Maximum working capacity of 5.6 nF / m
Certificate
- CE
- ROHS
- SGS
