Inox/Stainless Steel SANITARY HYGIENIC TUBE FITTINGS : 3A Tri-Clamp Fitting, Butt Weld Fitting, Hose Fittings, Hose Barb, Hose Adapter, I-Line Fittings, Q-Line Fittings, End Cap, Blank, Ferrule Blank - manufactured by TECH CONTROL ENTERPRISE CO., LTD. TAIWAN
Click here for details.3A/IDF/Tri-Clamp/Butt Weld/I-Line/Q-Line FERRULE, TANK SPUD, HOSE BARB, HOSE ADAPTER, BLANK END CAP, FERRULE GASKET, inox stainless steel sanitary hygienic tube fittings 食品/飲料/啤酒/釀造/製酒/牛乳/生技/製藥/化妝品/化工/純水系統/個人照護/車輛/電子/半導體/食品飲料包裝機械/整廠規劃/整廠設備/廠務系統/衛生級配管工程用管件 食品衛生級 管接頭、接環、夾盤、套圈、轉接頭、盲蓋、軟管接頭、盲蓋、墊片 ...
Product ID: 01
Send InquiryStainless Steel Hygienic Tube Fittings
● CLAMP FERRULE
● WELDING FERRULE
● ROLL-ON EXPANDING FERRULE
● TANK SPUD
● RUBBER HOSE ADAPTER
● TYGON HOSE ADAPTER
● BLANK END CAP
● FERRULE SEAL / GASKET
Silicone 、 EPDM 、 Teflon 、 Viton 、 Buna-N
3A / IDF / Tri-Clamp / Butt Weld / Roll-On Expanding / I-Line / Q-Line
(3A)
● 3A-14WMP WELDING Ferrule SHORT
● 3A-14AMP WELDING Ferrule LONG
● 3A-14WLMP WELDING Ferrule TANK SPUD LIGHT
● 3A-14MPW WELDING Ferrule TANK SPUD HEAVY WALL
● 3A-14RMP ROLL-ON EXPANDING Ferrule
● 3A-14MPHT TYGON HOSE Adapter
● 3A-14MPHR RUBBER HOSE Adapter
● 3A-16AMP Solid END CAP
● 3A-16W Solid END CAP (for Welding)
● 3A40A Ferrule GASKET without LIP
● 3A40B Ferrule GASKET with LIP
(IDF)
● IDF-IDFA MEDIUM WELD Ferrule
● IDF-IDFR Recessless Ferrule / ROLL-ON EXPANDING Ferrule
(I-LINE)
● 14WI-CB WELD Ferrule MALE
● 14WI WELD Ferrule MALE, SHORT
● 15WI-CB WELD Ferrule FEMALE
● 15WI WELD Ferrule FEMALE, SHORT
● 14WLI WELD Ferrule MALE LONG / Tank Spud Light
● 15WLI WELD Ferrule FEMALE LONG / Tank Spud Light
● 14WHI WELD Ferrule MALE / Tank Spud HEAVY WALL
● 15WHI WELD Ferrule FEMALE / Tank Spud HEAVY WALL
● 14RI ROLL-ON EXPANDING Ferrule MALE
● 15RI ROLL-ON EXPANDING Ferrule FEMALE
● 14WI-5 (SCH5) WELD Ferrule MALE SCH5
● 15WI-5 (SCH5) WELD Ferrule FEMALE SCH5
(Q-LINE)
● 14WQ WELD Ferrule SHORT SHANK
● 14WLQ WELD Ferrule LONG / Tank Spud LIGHT WALL
● 14RQ ROLL-ON EXPANDING Ferrule
(ADAPTERS)
● B19W Weld End X Male NPT
● 21-1 Weld End X Male NPT (with Hex Nut)
● 21MP Tri-Clamp End X Male NPT
● 22MP Tri-Clamp End X Female NPT
● Tri-Clamp End X Male PT
● Tri-Clamp End X PS
... and various Gaskets for Food-Grade Hygienic Piping in Compliance with FDA Requirements (Silicone, EPDM, Teflon, Viton, Buna-N)
Our Tri-Clamp, I-Line, and Q-Line compatible Sanitary Fittings are engineered for Hygienic Process Piping Systems in Food, Beverage, Brewing, Dairy, Pharmaceutical, Biotech, Cosmetics, Chemical, Water Treatment, Personal Care, Electronics, and Semiconductor Industries.
Designed for CIP (Clean-in-Place) and COP (Clean-Out-of-Place) operations, these fittings ensure fast, secure, and hygienic connections, allowing operators to easily assemble, disassemble, clean, and replace components with minimal downtime.
Design Features
-
Tri-Clamp, I-Line, Q-Line Assemblies
Each fitting set consists of two paired ferrules (with clamp collars), one gasket, and one clamp. Once assembled, the connection is seamless, leak-proof, and compact, allowing tighter piping layouts and more efficient use of production space.
-
I-Line Interlocking Design
Featuring interlocking flat ferrules and flat gaskets, the I-Line system provides a metal-to-metal contact that prevents over-compression of the clamp and eliminates the risk of gasket extrusion into product contact zones.
Key Advantages
-
Hygienic & Safe – Smooth surfaces with no dead angles, cracks, or crevices; easy to clean and sterilize; compliant with global sanitary standards.
-
Corrosion-Resistant Materials – Manufactured from high-grade stainless steel for durability, chemical stability, and compliance with food safety regulations.
-
Superior Sealing – Leak-proof and contamination-resistant design ensures product integrity and prevents cross-contamination.
-
Easy Maintenance – Quick assembly and disassembly reduce downtime during cleaning, maintenance, or replacement.
-
Durability & Reliability – Engineered to withstand high pressure, high temperature, and frequent cleaning cycles without deformation or excessive wear.
Quality Assurance by TECH CONTROL ENTERPRISE CO., LTD.
-
Material Verification – 100% inspected with Olympus Innov-X Delta XRF Metal Analyzer for accurate material compliance.
-
Premium Surface Finish – Ra ≤ 0.8 μm, polished for hygienic applications and safe handling.
-
Precision Machining – Smooth welding, assembly, and maintenance without sharp edges.
-
Strict Quality Control – Every fitting undergoes 100% inspection before shipment.
Each piece of TECH CONTROL's HYGIENIC TUBE FITTINGS & VALVES, is manufactured under the Strictest Material Control and Highest Precision Engineering to meet the world-class Hygienic Standards and Sanitary Requirements.
Furthermore, the Excellent Metallurgical Characteristics and Minimum Tolerence are favored by all piping engineers.
TECH CONTROL ENTERPRISE offers a complete line of HYGIENIC TUBE FITTINGS & VALVES with various connections and standards, including 3A Tri-Clamp, Butt Weld, Roll-On Expanding, BEVEL SEAT, IDF, RJT/BSM/CIP Flat Face, DIN 11851, and SMS 1145, printed product catalogs are available upon request.
(以下產品尺寸圖, 點擊後可放大)
Click the DIMENSION DRAWINGS below to Enlarge
|

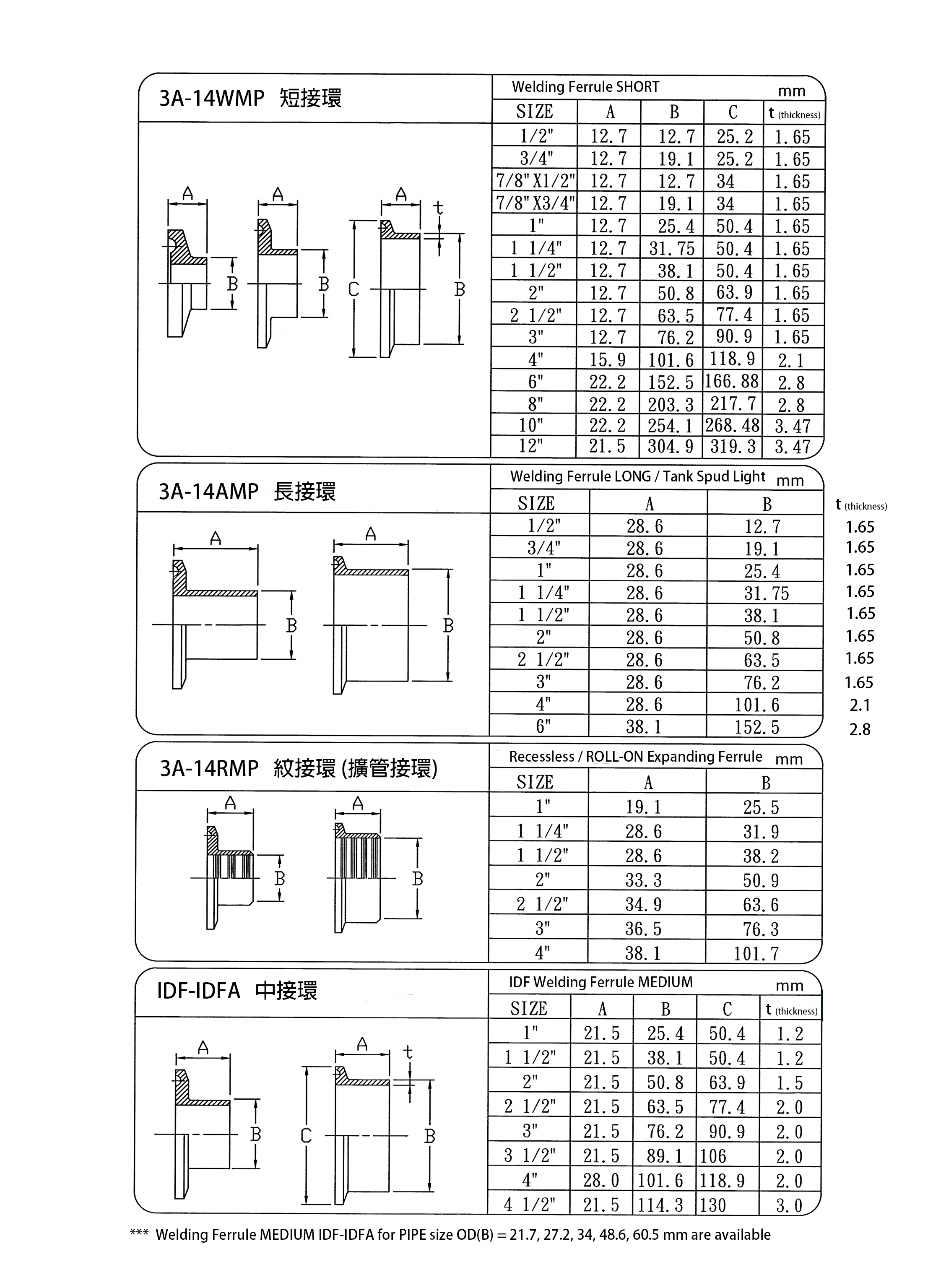

(3A Ferrules)
14WMP
Welding Ferrule Short
14AMP
Welding Ferrule Long
14RMP
Roll-On Expanding Ferrule
1/2" 3/4" 1" 1.25" 1.5" 2" 2.5" 3" t=1.65mm
4" t=2.1mm
6" 8" t=2.8mm
10" 12" t=3.47mm
(IDF Ferrules)
IDFA
Welding Ferrule Medium
1" 1.5" t=1.2mm
2" t=1.5mm 2.5" 3" 3.5" 4" t=2.0mm 4.5" t=3.0mm |
(3A Ferrules)
14MPW
Welding Ferrule
Tank Spud Heavy Wall
1" t=3.7mm
1.5" t=3.9mm
2" t=4.1mm
2.5" t=4.3mm
3" t=4.5mm
4" t=5.35mm
14WLMP
Welding Ferrule
Tank Spud Light
14MPHT
Tygon Hose Adapter
1" 1.5" 2" 2.5" 3" t=1.65mm
4" t=2.1mm
14MPHR
Rubber Hose Adapter
|
 |
 |
|
(IDF Ferrules)
IDFR
Recessless /
Roll-On Expanding Ferrule
(3A Ferrules)
16AMP
Solid End Cap
3A40A
Ferrule Gasket without Lip
|
(3A Ferrules)
3A40B
Ferrule Gasket with Lip
16W
Solid End Cap for Welding
|
 |
 |
|
(I-Line Ferrules)
14WI-CB
Weld Ferrule Male
14WI
Weld Ferrule Male, Short
15WI-CB
Weld Ferrule Female
15WI
Weld Ferrule Female, Short
|
(I-Line Ferrules)
14WLI
Weld Ferrule Male Long
15WLI
Weld Ferrule Female Long
14WHI
Weld Ferrule MALE / Tank Spud Heavy Wall
15WHI
Weld Ferrule Female / Tank Spud Heavy Wall
|
 |
 |
|
(Q-Line Ferrules)
14WQ
Weld Ferrule Short Shank
14RQ
Roll-On Expanding Ferrule
14WLQ
Weld Ferrule Long / Tank Spud Light Wall
|
(I-Line Ferrules)
14RI
Roll-On Union Ferrule, Male
15RI
Roll-On Union Ferrule, Female
14WI-5
Welding Ferrule Male, SCH5
15WI-5
Welding Ferrule Female, SCH5
|
 |
 |
|
(I-Line)
16AI-14I
Cap, Male
16AI-15I
Cap Female
(Q-Line)
16AQ-14Q
Cap
|
(3A Adapters)
B19W
Adapter
Weld X MNPT
21-1
Adapter
Weld X MNPT
with HEX Nut
21MP
Adapter
Tri-Clamp X MNPT
22MP
Adapter
Tri-Clamp X FNPT
|
 |
 |
|
(3A Adapters)
Adapter
Tri-Clamp X MPT
Adapter
Tri-Clamp X PS
|
(3A) 14MPHR
Rubber Hose Adapter
Fractional
|
 |
 |
由此下載本產品最新型錄 !!!
Download LATEST PRODUCT CATALOG Here !!!
Specifications
- Size: 1/2" 3/4" 7/8"X1/2" 7/8"X3/4" 1" 1.25" 1.5" 2" 2.5" 3" 4" 6" 8" 10" 12" 3A (Unit : mm) 1/2" (OD=12.7, t=1.65) 3/4" (OD=19.05, t=1.65) 1" (OD=25.4, t=1.65) 1.5" (OD=38.1, t=1.65) 2" (OD=50.8, t=1.65) 2.5" (OD=63.5, t=1.65) 3" (OD=76.2, t=1.65) 4" (OD=101.6, t=2.1) 6" (OD=152.4, t=2.8)
- IDF (Unit : mm) 1" (OD=25.4, t=1.2) 1.5" (OD=38.1, t=1.2) 2" (OD=50.8, t=1.5) 2.5" (OD=63.5, t=2.0) 3" (OD=76.2, t=2.0) 3.5" (OD=89.1, t=2.0) 4" (OD=101.6, t=2.0) Check the dimension drawings for detail...
- Material: SS304, SS316, SS316L
- Length: 12.7mm, 21.5mm, 28.6mm, 76.2mm, 114.3mm (Check the dimension drawings for detail...)
- Gasket Material ( Optional ): Silicone, EPDM, Viton (FKM), Teflon (PTFE), Buna-N
- Gasket Material Characteristics Reference (Recommended Continuously-Operating-Temperature): Silicone : -30°C to 120°C, high-temperature resistance, white translucent EPDM : -30°C to 100°C, ozone resistance, black Viton: -15°C to 120°C, alcohol resistance, black Teflon (PTFE): -30°C to 160°C, acid and alkali resistance, solvent resistance, white Buna-N: -10°C to 100°C, oil resistance, natural light brown color, customizable to white
- Example of Request for Quotation/Order : Part Number, Material, Size, Quantity 3A-14WMP, 316L, 2", 5PCS
Features
- Material Strictly Inspected and Selected by using Olympus Innov-X Delta XRF Metal Analyzer
- Uniform Thickness and Tight Tolerence making the Piping engineering such as Assembling and Welding Easy
- Quality Control and Fine Polish ensure High Strength and Superior Corrosion-Resistant Performance meeting the Strict Hygienic Requirements.
- Burrs, Sharp Edges Removed & Corners Polished. They are assembled and maintained without causing harm to the hands.
- Fully Inspected and Well Packed before delivery
| Tube Specfication | Size(inch) | OD(mm) | Thickness(mm) |
|---|---|---|---|
| 3A | 1/2" | 12.7 | 1.65 |
| 3A | 3/4" | 19.1 | 1.65 |
| 3A | 7/8"X1/2" | 12.7 | 1.65 |
| 3A | 7/8"X3/4" | 19.1 | 1.65 |
| 3A | 1" | 25.4 | 1.65 |
| 3A | 1 1/4" | 31.75 | 1.65 |
| 3A | 1.5" | 38.1 | 1.65 |
| 3A | 2" | 50.8 | 1.65 |
| 3A | 2.5" | 63.5 | 1.65 |
| 3A | 3" | 76.2 | 1.65 |
| 3A | 4" | 101.6 | 2.1 |
| 3A | 6" | 152.5 | 2.8 |
| 3A | 8" | 203.3 | 2.8 |
| 3A | 10" | 254.1 | 3.47 |
| 3A | 12" | 304.9 | 3.47 |
| IDF | 1" | 25.4 | 1.2 |
| IDF | 1.5" | 38.1 | 1.2 |
| IDF | 2" | 50.8 | 1.5 |
| IDF | 2.5" | 63.5 | 2.0 |
| IDF | 3" | 76.2 | 2.0 |
| IDF | 3.5" | 89.1 | 2.0 |
| IDF | 4" | 101.6 | 2.0 |
