RJT/BSM/CIP Flat Face UNION FITTINGS
● WELD MALE
● WELD LINER
● EXPANDING MALE
● EXPANDING LINER
● HEX NUT
● ROUND SLOTTED NUT
● BLANK HEX NUT
● BLANK CAP
● SEAL / GASKET
● RJT14K BSM Weld Liner (AUS)
● RJT14Z RJT Weld Liner (NZ)
● RJT14S Weld Liner short
● RJT15 Weld Male
● CIP14K Weld Liner CIP FLAT FACE
● CIP15 Weld Male CIP FLAT FACE
● RJT14R Liner for expanding
● RJT15R Threaded Male for expanding
● BS13H BSM Hex Nut (for RJT/BSM/CIP FLAT FACE)
● RJT13R RJT Round Slotted Nut (for RJT/BSM/CIP FLAT FACE)
● RJT13AH Blank Hex Nut (for RJT/BSM/CIP FLAT FACE)
● RJT16A BSM Blank Cap (can be used in Hex Nut or Slotted Nut)
● RJT40A BSM GASKET (for AUS & UK)
● RJT40B GASKET CIP FLAT FACE
● RJT40C RJT STEPPED GASKET (for NZ)

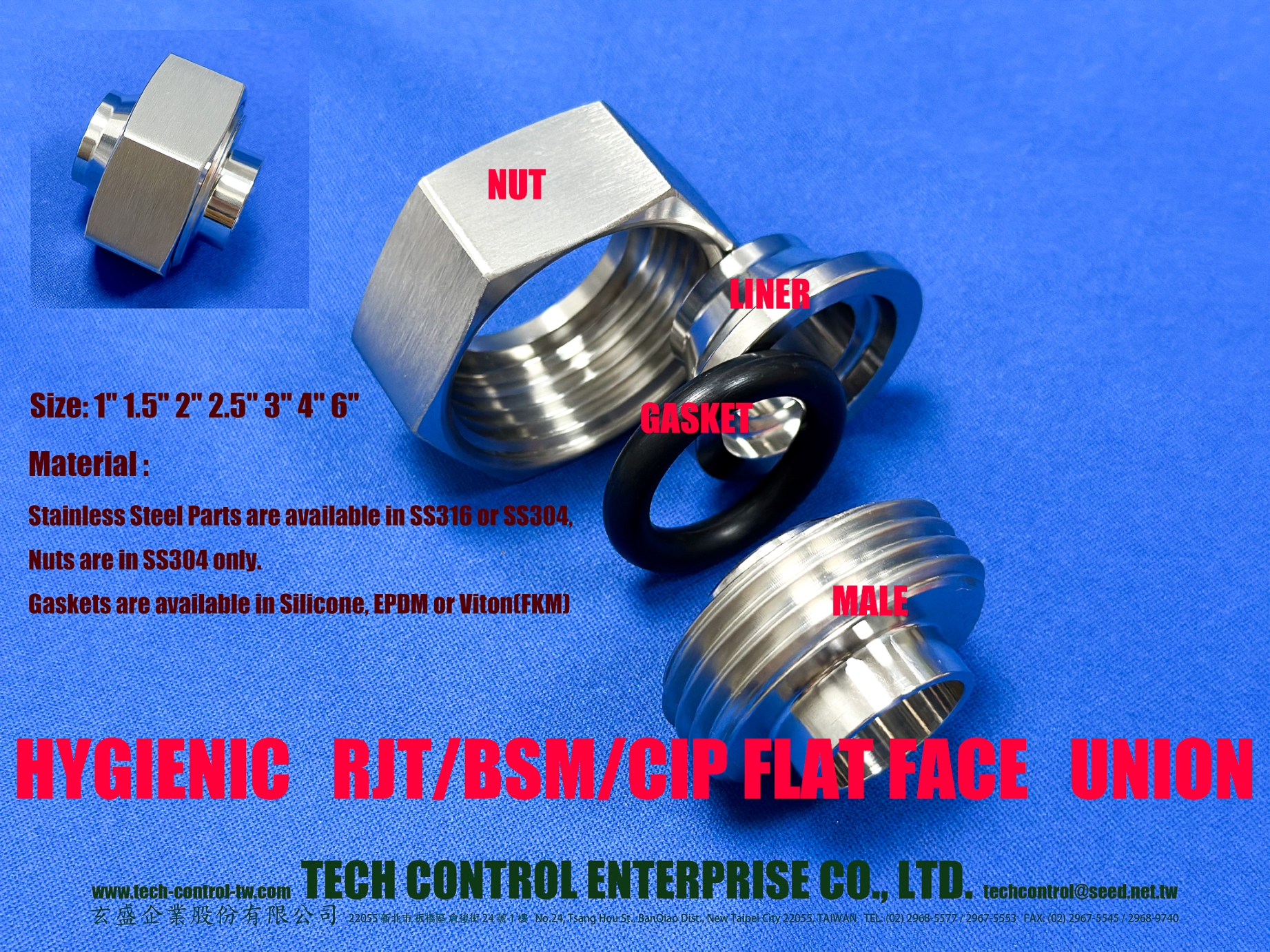

The RJT/BSM UNION (RJT : Ring Joint Type; BSM : British Standard Milk) was originally designed as a piping connection to meet dairy processing and sanitary standards. The assembly consists of a plain ferrule, a threaded ferrule, a gasket (seal), and a hex nut. Today, it is widely utilized in the milk, beverage, and pharmaceutical industries, and is commonly found in dairy, brewery, and food processing applications across the UK, Australia, and New Zealand.
The RJT/BSM Union features the following characteristics:
🟦 Sanitary Design :
The smooth internal bore minimizes the buildup of bacteria, sediment, and other contaminants, meeting strict food safety and hygiene requirements.
🟦 Superior Sealing Performance :
Achieves a reliable seal through the combination of a seal ring, threaded ferrule, and nut, effectively preventing leaks and contamination.
🟦 Easy Disassembly :
Designed for quick teardown to facilitate efficient cleaning, maintenance, and replacement.
🟦 CIP Compatible :
Suitable for Clean-In-Place (CIP) systems (Note: specifically for RJT unions and CIP Flat Face unions).
In processes such as
FOOD, BEVERAGE, BEER, BREWERY, WINEMAKING, DAIRY, PHARMACEUTICALS, BIOTECHNOLOGY, COSMETICS, CHEMICALS, PURE WATER SYSTEM, PERSONAL CARE, ELECTRONICS, and SEMICONDUCTORS, piping systems must meet the following requirements:
📌 Safety and Hygiene :
The design and manufacture of all fittings and equipment that come into contact with products (referring here to food, beverages, pharmaceuticals, etc.) must comply with relevant industry standards and regulations to ensure product safety. Fittings and equipment should feature smooth surfaces, free of dead zones or crevices, and be easy to clean and sanitize to minimize the risk of bacterial growth.
📌 Material Selection :
Manufactured from corrosion-resistant materials such as stainless steel to ensure durability and chemical stability in food, beverage, and pharmaceutical contact environments. These materials must comply with food hygiene and safety regulations and be resistant to corrosion, contamination, and deformation.
📌 Sealing Performance :
To avoid any substance leakage or ingress into the piping system, the sealing performance of the fittings is critical. Fittings must feature a reliable seal design to ensure zero leakage and prevent cross-contamination.
📌 Ease of Disassembly and Installation :
Fittings should be easy to disassemble and assemble to facilitate cleaning, maintenance, and replacement, thereby reducing production line downtime.
📌 Reliability and Durability :
Fittings must remain stable under high pressure, high temperature, and frequent operation. They must withstand prolonged use and repeated cleaning cycles without being prone to damage or wear.
👉 All Stainless Steel Sanitary/Hygienic-Grade Tube, Fittings, Valves & Pumps produced by TECH CONTROL ENTERPRISE CO., LTD. undergo strict quality control using the Olympus Innov-X Delta XRF Metal Analyzer.
👉 With a surface finish of Ra ≤ 0.8μm, our products comply with food-grade sanitary standards.
👉 They are precision-machined for easy welding, assembly, and maintenance. Sharp edges are polished to ensure safety during assembly, maintenance, and cleaning.
👉 Each item undergoes 100% inspection before shipment.
👉 TECH CONTROL ENTERPRISE offers a complete line of Stainless Steel Hygienic TUBE FITTINGS, VALVES & PUMPS with various connections and standards, including 3A Tri-Clamp, Butt Weld, Roll-On Expanding, BEVEL SEAT, IDF, RJT/BSM/CIP Flat Face, DIN 11851, and SMS 1145, printed product catalogs are available upon request.
(以下產品尺寸圖, 點擊後可放大) !!!
Click the DIMENSION DRAWINGS below to Enlarge !!!
|
RJT14K
焊無牙接頭
BSM Weld Liner
(AUS)
CIP14K
焊無牙接頭
Weld Liner
(CIP FLAT FACE)
RJT14Z
焊無牙接頭
RJT Weld Liner
(NZ)
RJT15
焊外牙接頭
Weld Male
(for RJT14Z or RJT14K)
|
CIP15
CIP外牙接頭
Weld Male
(CIP FLAT FACE)
RJT14R
擴管無牙接頭
Expanding Liner
RJT15R
擴管外牙接頭
Expanding Male Threaded
BS13H
BSM六角螺母
(母牙/內牙)
BSM Hex Nut
(for RJT/BSM/CIPFF)
|
 |
 |
|
RJT13R
圓螺母(母牙/內牙)
RJT Slotted Nut
(for RJT/BSM/CIPFF)
RJT13AH
六角盲螺帽
(母牙/內牙)
Blank Hex Nut
(for RJT/BSM/CIPFF)
RJT14S
焊無牙短接頭
Weld Liner Short
RJT16A
BSM盲蓋
BSM Blank Cap
(for Hex or Slotted Nut)
|
RJT40A
BSM墊片
BSM Gasket
(AUS)
RJT40B
CIP墊片
Gasket
CIP FLAT FACE
RJT40C
NZ STEP SEAL墊片
RJT Stepped Gasket
(NZ)
|
 |
 |
*** RJT/BSM/CIP FLAT FACE UNION set
-
RJT14K + RJT15 + RJT40A (BSM Gasket) + BS13H or RJT13R
-
CIP14K + CIP15 + RJT40B (Flat Face CIP Gasket) + BS13H or RJT13R
-
RJT14Z + RJT15 + RJT40C (NZ Type Stepped Seal) + BS13H or RJT13R
*** ONLY Item 2 & Item 3 for CIP (Clean-In-Place)
Specifications
Size: 1" 1.5" 2" 2.5" 3" 4" 6" RJT/BSM/CIP FLAT FACE (Unit : mm) 1" (OD=25.8, t=1.8) 1.5" (OD=38.5, t=1.8) 2" (OD=51.2, t=1.8) 2.5" (OD=63.9, t=1.8) 3" (OD=76.6, t=1.8) 4" (OD=102.0, t=2.2) 6" (OD=152.8, t=2.2) Check the dimension drawings for detail... Material : Stainless Steel Parts are available in SS316 or SS304, Nuts are in SS304 only. ( Material Test Reports EN10204-3.1 are available upon request ) Surface Finish meet the requirements of 3-A Sanitary Standards - This refers to the surfaces that come into contact with liquid raw materials, products, or cleaning solutions in food, beverage, biotech, and pharmaceutical processes. Gaskets are available in Silicone, EPDM or Viton(FKM) complies with the requirements of FDA 21 CFR 177.260 Gasket Material Characteristics Reference (Recommended Continuously-Operating-Temperature): Silicone : -30°C to 120°C, high-temperature resistance, white translucent EPDM : -30°C to 100°C, ozone resistance, black Viton: -15°C to 120°C, alcohol resistance, black Inquiry or Ordering Example : Item Name / Material / Size / Quantity RJT14K / 316 / 2" / 5PCSFeatures
- Materials rigorously inspected and verified using the Olympus Innov-X Delta XRF Metal Analyzer.
- Uniform wall thickness and tight tolerances facilitate seamless piping engineering, assembly, and welding.
- Stringent quality control and high-grade polishing ensure superior strength and corrosion resistance meeting the strictest hygienic standards.
- Burrs and sharp edges are removed and corners polished to ensure safe handling during assembly and maintenance.
- 100% inspection and secure packaging guaranteed before delivery.
| Tube Specification | Size(inch) | OD(mm) | Thickness(mm) |
|---|---|---|---|
| RJT/BSM/CIPFF | 1" | 25.8 | 1.8 |
| RJT/BSM/CIPFF | 1.5" | 38.5 | 1.8 |
| RJT/BSM/CIPFF | 2" | 51.2 | 1.8 |
| RJT/BSM/CIPFF | 2.5" | 63.9 | 1.8 |
| RJT/BSM/CIPFF | 3" | 76.6 | 1.8 |
| RJT/BSM/CIPFF | 4" | 102.0 | 2.2 |
| RJT/BSM/CIPFF | 6" | 152.8 | 2.2 |
