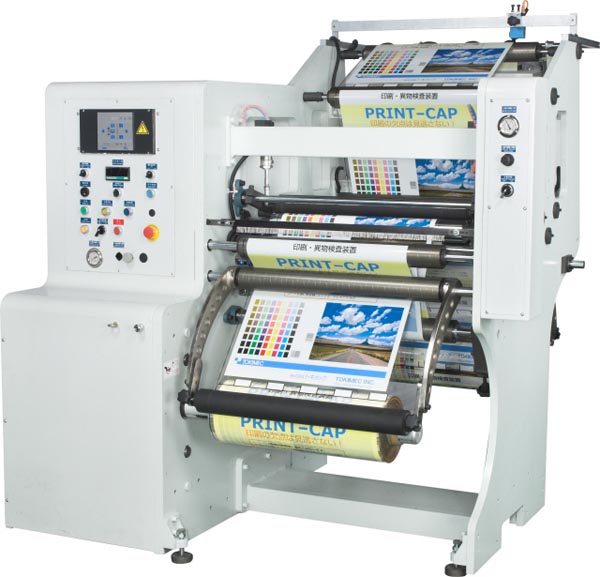

INSPECT-V600

Product ID: INSPECT-V600

Rewinding Machines Description:

The INSPECT-V model is designed for the width of web not more than 600mm, it is suitable for rewinding/inspecting the web after slit. 3 motors controlled ensure stable tension performance. Sychronous stroboscope provides a better view of web.

	MEMORY FUNCTION ．When any defect is detected by human-eyes, press INSPECTION button and then the machine reverses automatically, 　the defects will be stopped at center of inspection table for operator to easily fiind and cut off the part.
	MAN-MACHINE INTERFACE(MMI) ．All models come standard with MMI touch screen interface. ．The touch screen has high resolution color as well as a long service life. ．All models come standard with independent and free-standing operator panels.

Model	INSPECT-V 600
Speed(m/min)	300
Available width(mm)	600
Unwind diameter(mm)	600
Rewind diameter(mm)	600
STANDARD
Digital guiding system	●
Shaftiess unwind/rewind	N/A
Shaft unwind/rewind	N/A
Cantileverd unwind/rewind unit with 3” air shaft	●
Forward and backward operation	●
Tension transducers for unwind and rewind unit	●
Dancer tension control on unwind and rewind unit	N/A
Taper tension mode	●
OPTIONAL
Auto. Defects detection system(100% inspection)	●
Stroboscope	●
Splice Table	●
Trim Slitting System	●
Unwind and rewind diameter increase – 1000mm.	N/A
Unwind 6” chuck	●
Rewind 6” chuck	●
CE/UL	●
