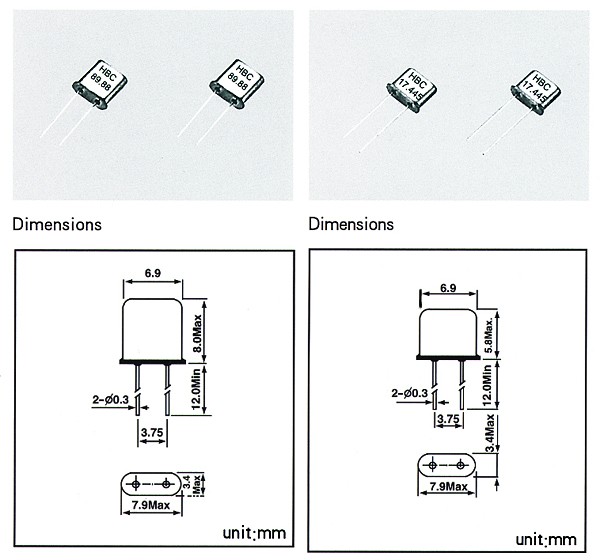

| Fo (MHz) | Mode | RS (ohm) Max (UM-1) | RS (ohm) Max (UM-5) |
|---|---|---|---|
| 10.000 | Fund | 30 | 40 |
| 12.000 | Fund | 25 | 35 |
| 17.445 | Fund | 25 | 35 |
| 18.355 | Fund | 25 | 35 |
| 20.945 | Fund | 25 | 35 |
| 43.866 | 3rd | 40 | 50 |
| 44.991 | 3rd | 40 | 50 |
| 45.000 | 3rd | 40 | 50 |
| 46.166 | 3rd | 40 | 50 |
| 47.216 | 3rd | 40 | 50 |
| 48.200 | 3rd | 40 | 50 |
| 49.058 | 3rd | 40 | 50 |
| 50.750 | 3rd | 40 | 50 |
| 53.550 | 3rd | 40 | 50 |
| 60.625 | 3rd | 40 | 50 |
| 64.975 | 3rd | 40 | 50 |
| 65.737 | 3rd | 40 | 50 |
| 69.925 | 3rd | 40 | 50 |
| 74.584 | 3rd | 40 | 50 |
| 84.400 | 3rd | 40 | 50 |
| 90.000 | 5th | 70 | 80 |
Specifications
- Frequency range: 10 - 90 MHz
- Frequency tolerance: ± 10 ppm at 25°C
- Temperature stability: ± 10 ppm over -10°C to 70°C
- Drive level: 100 µW Max
- Load capacitance: 12 - 32 pf, series
- Shunt capacitance: 7 pf Max
- Equipment series resistance: see below
