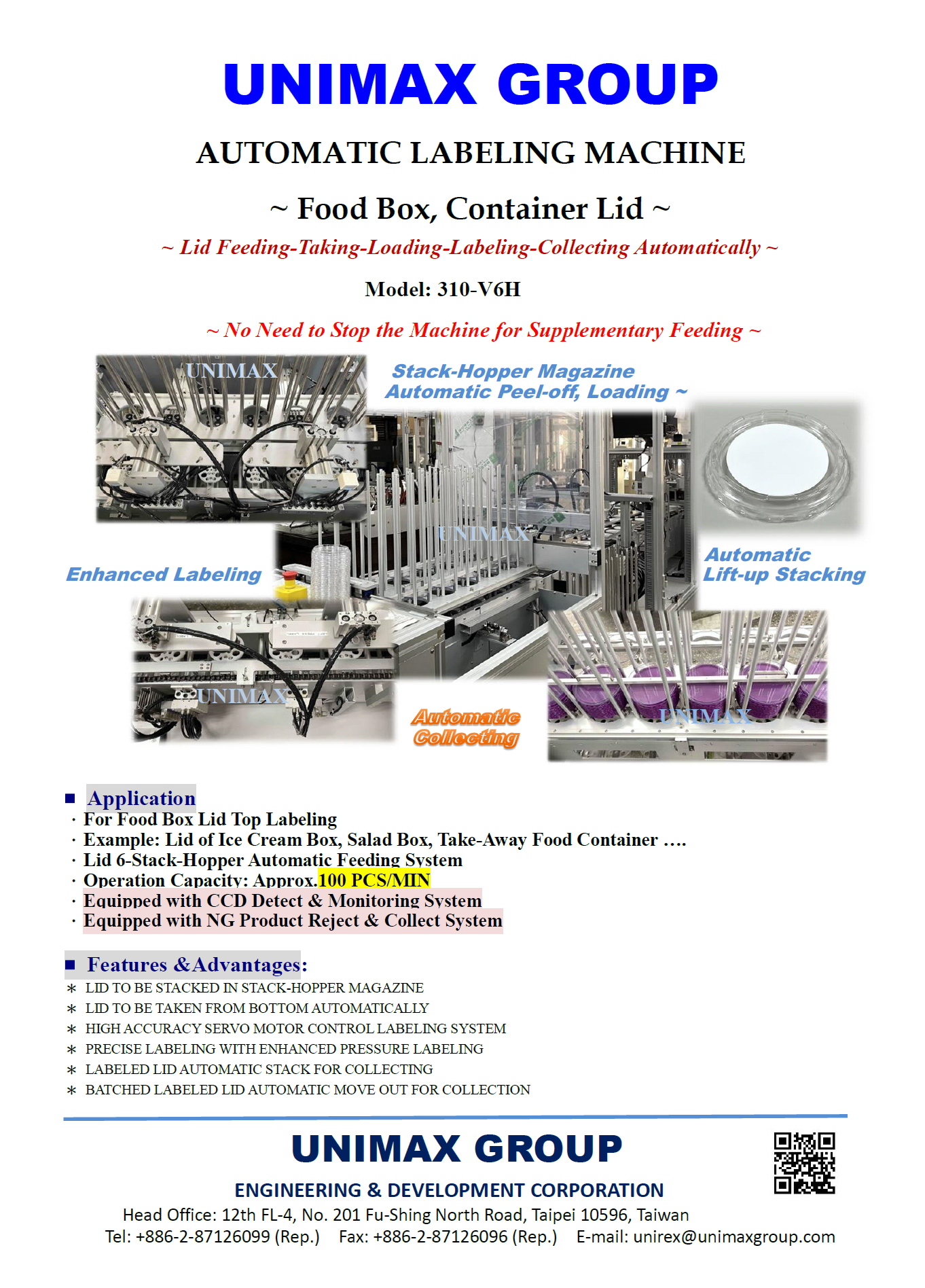

Fully Automatic Box Lid Labeling Machine
Product ID: Box/Container Lid Labeling 310-V6H Series (58-2)
Send InquiryModel: 310-V6H
￭ Application:
• For Food Box Lid Automatic Nonstop Labeling
• No Need to Stop The Machine for Supplementary Filling
￭ Product Example:
Ice cream Cup Lid, Food Box Lid, Salad Box Lid, Take-Away Food Box Lid, Candy Box Lid, Meat Box, Drinking Cup Lid...
￭ Operation Advantages:
• Lid Stack-Hopper Automatic Feeding System
• Lid Supplementary Filling from Top to Bottom
• Automatic Feeding-Taking-Loading-Labeling-Collecting
Specifications
￭ Specification: • Pressure Sensitive Self-Adhesive Label. • 310-V6H Machine speed: Approx. 100 pcs/min • Servo Control Conveyor: 2400*200*1000 MM / 5000 * 200 *850 MM • 310-V6H: Equipped with Mold-Sets * 66 Sets • Lid to be Stacked in Stack-Hopper • 310-V6H: (3-in-1) * 2 Stacked-Hopper Magazine • Automatic Position Setting System • 310-V6H:- Equipped with NG Product Taking-Collecting System- Equipped with CCD Detect & Monitoring System- Equipped with Aluminum Safety Protection Door & Frame • Machine Dimension: Approx. 5,500 * 800 * 1780 MMFeatures
￭ Features: • Lid to be Stacked in Stack-Hopper Magazine. • Lid to be taken from Bottom of Hopper Automatically. • High Accuracy Servo Control Labeling System. • Precise Labeling with Enhanced Pressure Labeling System. • Labeled Lids Automatic Stack for Collecting. • Batched & Labeled Lids Automatic Move-Out for Collecting. * The brand names of products shown in the catalogue are the reference application to our manufacturing equipment only.Main Products
UNIMAX GROUP plastic & packaging machinery department offer a wide range of plastic processing, labeling, assembly, lining machines and packaging automation for different industries. The tissue paper machinery department offer superior converting, wrapping and packaging machines for tissue industry.
