Our Cable Only weld-On Winches were designed using for flat bed truck to secure goods while loading on the truck. The working load limit is 3,335Lbs but can resist 10,000Lbs without breaking. The outside powder coat can provide unique anti-rust protection and we also can follow your need to produce these winches in different colors.
Features
- Branded product
- Buyer's label offered.

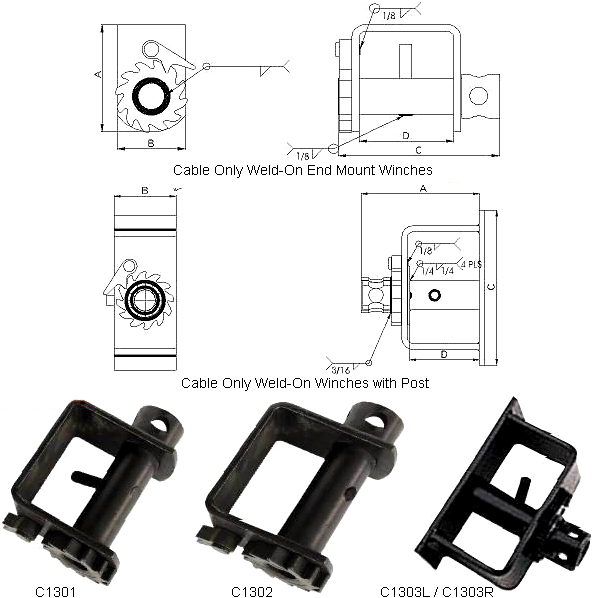

| Part Number | Description | Dimension in Inches (mm) - A | Dimension in Inches (mm) - B | Dimension in Inches (mm) - C | Dimension in Inches (mm) - D | Weight Lbs (Kgs) | B / S Lbs (Kgs) | WLL Lbs (Kgs) |
|---|---|---|---|---|---|---|---|---|
| C1301 | Cable only Weld-On winches, with post | 5-1/2 (139.7) | 3-1/2 (88.9) | 7-7/8 (200) | 4-7/8 (123.8) | 8.6 (3.90) | 10,000 (4,540) | 3,335 (1,515) |
| C1302 | Cable only Weld-On winches, without post | 5-1/2 (139.7) | 3-1/2 (88.9) | 7-7/8 (200) | 4-7/8 (123.8) | 8 (3.63) | 10,000 (4,540) | 3,335 (1,515) |
| C1303L | Cable only end mount Weld-On winch, left hand | 7-5/8 (193.7) | 4 (101.6) | 10 (254) | 4 (101.6) | 15.5 (7.04) | 10,000 (4,540) | 3,335 (1,515) |
| C1303R | Cable only end mount Weld-On winch, right hand | 7-5/8 (193.7) | 4 (101.6) | 10 (254) | 4 (101.6) | 15.5 (7.04) | 10,000 (4,540) | 3,335 (1,515) |
