Hyperwell Industrial Corp.
Our Sliding Winches were designed using for flat bed truck to secure goods while loading on the truck. The working load limit is 5,500Lbs but can resist 16,500Lbs without breaking. The outside powder coat can provide unique anti-rust protection and we also can follow your need to produce these winches in different colors.
Features
- Branded product
- Buyer's label offered.

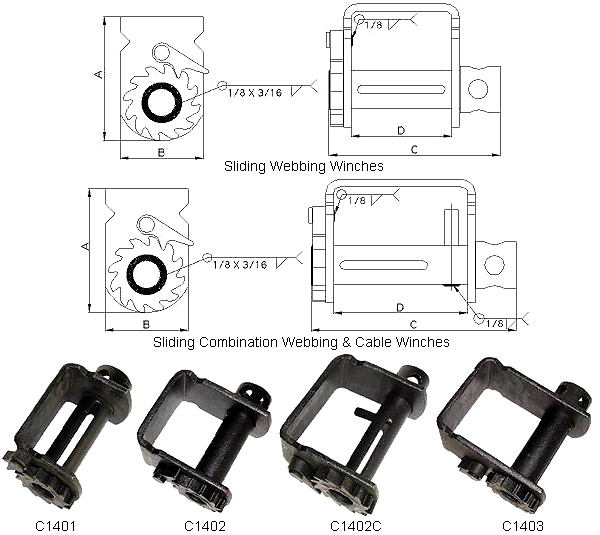

| Part Number | Description | Dimension in Inches (mm) - A | Dimension in Inches (mm) - B | Dimension in Inches (mm) - C | Dimension in Inches (mm) - D | Weight Lbs (Kgs) | B / S Lbs (Kgs) | WLL Lbs (Kgs) |
|---|---|---|---|---|---|---|---|---|
| C1401 | Low Profile webbing winch | 5-1/2 (139.7) | 4 (101.6) | 7-7/8 (200) | 4-3/4 (120.6) | 9.3 (4.22) | 16,500 (7,500) | 5,500 (2,500) |
| C1402 | Standard webbing winch | 7 (177.8) | 4 (101.6) | 7-7/8 (200) | 4-3/4 (120.6) | 10.5 (4.76) | 16,500 (7,500) | 5,500 (2,500) |
| C1402C | Standard combination webbing & cable winch | 7 (177.8) | 4 (101.6) | 9-3/4 (247.6) | 6-1/2 (165.1) | 12.3 (5.58) | 16,500 (7,500) | 5,500 (2,500) |
| C1403 | Storable webbing winch | 7-1/2 (3.4) | 4 (101.6) | 7-7/8 (200) | 4-3/4 (120.6) | 10.9 (4.95) | 16,500 (7,500) | 5,500 (2,500) |
