Hyperwell Industrial Corp.

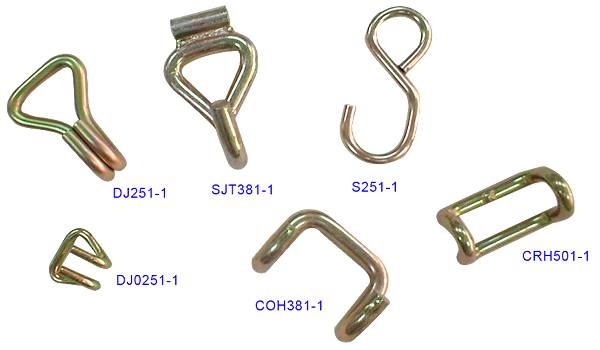

We produce different wire forming hooks using for cargo control system, you can refer to the types and loading capability below to select the suitable one for your application.
Features
- Branded product
- Buyer's label offered.
| Part Number | Dimension in Inches (mm) - A | Dimension in Inches (mm) - B | Dimension in Inches (mm) - C | Dimension in Inches (mm) - D | Dimension in Inches (mm) - E | Weight (g) | B / S Lbs (Kgs) | WLL Lbs (Kgs) |
|---|---|---|---|---|---|---|---|---|
| DJO251-1 | 1.00 / 25.0 | 0.24 / 6.0 | 1.38 / 35.0 | 0.35 / 9.0 | - | 33 | 2,200 / 1,000 | 733 / 333 |
| DJO501-1 | 2.00 / 50.0 | 0.26 / 6.5 | 1.73 / 44.0 | 0.35 / 9.0 | - | 48 | 4,400 / 2,000 | 1,467 / 673 |
| DJ251-1 | 1.00 / 25.0 | 0.25 / 6.3 | 1.77 / 45.0 | 0.39 / 10.0 | - | 46 | 3,000 / 1,361 | 1,000 / 454 |
| DJ252-1 | 1.00 / 25.0 | 0.31 / 8.0 | 3.15 / 80.0 | 0.79 / 20.0 | - | 105 | 3,300 / 1,500 | 1,100 / 500 |
| DJ381-1 | 1.50 / 38.1 | 0.37 / 9.5 | 3.35 / 85.0 | 0.79 / 20.0 | - | 169 | 6,600 / 3,000 | 2,200 / 1,000 |
| DJ501-1 | 2.00 / 50.0 | 0.28 / 7.0 | 2.68 / 68.0 | 1.02 / 26.0 | - | 88 | 3,000 / 1,361 | 1,000 / 454 |
| DJ502-1 | 2.00 / 50.0 | 0.37 / 9.5 | 3.35 / 85.0 | 0.79 / 20.0 | - | 180 | 5,000 / 2,268 | 1,667 / 756 |
| DJ503-1 | 2.00 / 50.0 | 0.47 / 12.0 | 3.35 / 85.0 | 0.91 / 23.0 | - | 278 | 11,000 / 5,000 | 3,667 / 1,667 |
| DJ504-1 | 2.00 / 50.0 | 0.47 / 12.0 | 4.21 / 107.0 | 0.91 / 23.0 | - | 317 | 11,000 / 5,000 | 3,667 / 1,667 |
| DJ751-1 | 3.00 / 75.0 | 0.63 / 16.0 | 4.76 / 121.0 | 0.71 / 18.0 | - | 736 | 22,000 / 10,000 | 7,333 / 3,333 |
| DJ752-1 | 3.00 / 75.0 | 0.63 / 16.0 | 5.63 / 143.0 | 0.71 / 18.0 | - | 749 | 22,000 / 10,000 | 7,333 / 3,333 |
| SJT381-1 | 1.50 / 38.1 | 0.37 / 9.5 | 3.54 / 90.0 | 0.79 / 20.0 | 0.67 / 17.0 | 230 | 6,600 / 3,000 | 2,200 / 1,000 |
| SJT501-1 | 2.00 / 50.0 | 0.47 / 12.0 | 5.12 / 130.0 | 0.59 / 15.0 | 0.75 / 19.0 | 433 | 11,000 / 5,000 | 3,667 / 1,667 |
| S251-1 | 1.00 / 25.0 | 0.25 / 6.3 | 4.06 / 103.0 | 1.00 / 25.0 | - | 62 | 1,100 / 500 | 367 / 167 |
| S252-1 | 1.00 / 25.0 | 0.27 / 7.0 | 4.06 / 103.0 | 1.00 / 25.0 | - | 66 | 1,200 / 550 | 400 / 183 |
| S253-1 | 1.00 / 25.0 | 0.31 / 8.0 | 4.13 / 105.0 | 1.00 / 25.0 | - | 86 | 2,000 / 907 | 667 / 302 |
| S254-1 | 1.00 / 25.0 | 0.33 / 8.5 | 4.33 / 110.0 | 1.00 / 25.0 | - | 101 | 2,200 / 1,000 | 733 / 333 |
| S255-1 | 1.00 / 25.0 | 0.37 / 9.5 | 4.65 / 118.0 | 1.00 / 25.0 | - | 142 | 2,500 / 1,134 | 833 / 378 |
| S256-1 | 1.06 / 27.0 | 0.41 / 10.5 | 4.80 / 122.0 | 1.00 / 25.0 | - | 151 | 3,300 / 1,500 | 1,100 / 500 |
| COH381-1 | 1.50 / 38.1 | 0.37 / 9.5 | 2.36 / 60.0 | 0.67 / 17.0 | - | 121 | 6,600 / 3,000 | 2,200 / 1,000 |
| COH502-1 | 2.00 / 50.0 | 0.37 / 9.5 | 2.36 / 60.0 | 0.67 / 17.0 | - | 128 | 6,600 / 3,000 | 2,200 / 1,000 |
| COH503-1 | 2.00 / 50.0 | 0.47 / 12.0 | 2.28 / 58.0 | 0.55 / 14.0 | - | 140 | 11,000 / 5,000 | 3,667 / 1,667 |
| CRH501-1 | 2.00 / 50.0 | 0.24 / 6.0 | 1.97 / 50.0 | 0.67 / 17.0 | - | 86 | 550 / 250 | 183 / 83 |
| CRH502-1 | 2.00 / 50.0 | 0.37 / 9.5 | 1.46 / 37.0 | 0.63 / 16.0 | - | 138 | 3,300 / 1,500 | 1,100 / 500 |
