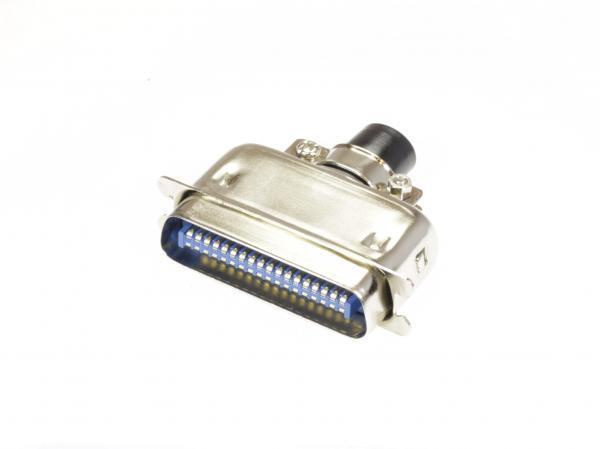

RS1 SERIES
RS2 SERIES
Specifications
- 1. Name
- RS1: 57 S/T Dip Male
- RS2: 57 S/T Dip Female
- 2. No. of Contacts
- 14, 24, 36, 50
- 3. Contact Type
- P: Plug / Male
- S: Socket / Female
- 4. Insulator Color
- B: Blue (Standard)
- K: Black
- 5. Contact Plating
- A: Gold Flash (Standard)
- E: Gold 15u"
- F: Gold 30u"
- 6. Shell Plating
- A: Nickel Plated
- 7. Terminal Tail Length
- A: 5.0mm
- D: 4.3mm
- 8. Front Option
- 0: Ø3.05mm
- A: With 4.8mm Hex Screw (#4-40)
- B: Rivet 5.8mm Hex Nut (#4-40)
- C: Rivet 3.0mm Nut (#4-40)
- D: With IEEE488 Hex Screw (M3.5)
- 9. Back Option
- 0: Ø3.05mm
- A: Rivet 4.8mm Bracket
- B: Rivet 5.8mm Bracket
- E: Rivet 4.0mm Nut (#4-40)
- H: Rivet 4.0mm Nut (M3)
- 10. Serial No.
- 0: Standard
- 11. Serial No.
- 0: Standard
| Part number cross alternative reference | ||
| Positions | FU-YAO | DDK |
| 14 | RS1-14PBAAA0000 | 57GE-10140 |
| 24 | RS1-24PBAAA0000 | 57GE-10240 |
| 36 | RS1-36PBAAA0000 | 57GE-10360 |
| 50 | RS1-50PBAAA0000 | 57GE-10500 |
| Part number cross alternative reference | ||
| Positions | FU-YAO | DDK |
| 14 | RS2-14SBAAD0000 | 57GE-20140 |
| 24 | RS2-24SBAAD0000 | 57GE-20240 |
| 36 | RS2-36SBAAD0000 | 57GE-20360 |
| 50 | RS2-50SBAAD0000 | 57GE-20500 |
