RR1 SERIES
RR2 SERIES

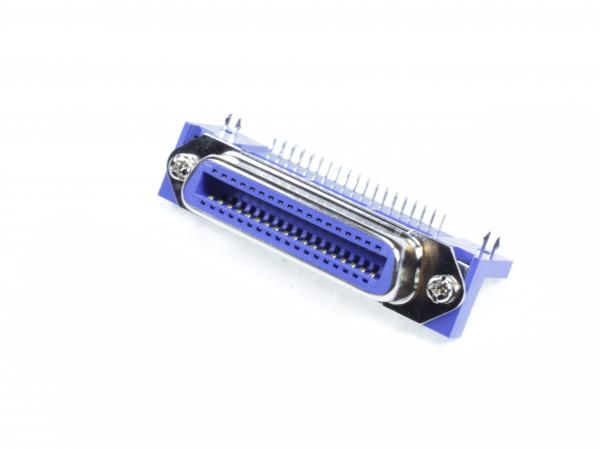

Centronic PCB Right Angle Type ((57LE-10140,57LE-10240,57LE-10360,57LE-10500,57LE-20140,57LE-20240,57LE-20360,57LE-20500))
Product ID: RR1 / RR2
Send InquiryRR2-24S or RR1-24P was connect to GPIB equipment.
Female or Male IEEE-488 Connector, right angle PC terminals.
Specifications
- 1. TYPE
- RR1: 57 R/A DIP MALE
- RR2: 57 R/A DIP FEMALE
- 2. No. OF CONTACTS
- 14, 24, 36, 50
- 3. CONTACT TYPE
- P: PlUG
- S: SOCKET
- 4. INSULATOR COLOR
- B: BlUE
- K: BLACK
- 5. CONTACT PLATING
- A: GOLD FLASH
- E: 15u"
- F: 30u"
- 6. SHELL PLATINF
- A: NICKEL
- 7. TERMINAL LENGTH
- A: 4.75mm
- G: 3.2mm
- 8. GROUND TAB
- A: L SHAPE
- P: Z SHAPE
- 9. SPECIAL FUNCTION
- A: 4.8mm HEX SCREW LOCK
- H: IEEE488 HEX SCREW LOCK
- 10. SPECIAL FUNCTION
- A: SCREW
- M: RIVET
- Q: RIVET+SCREW LOCK
- 11. SPECIAL FUNCTION
- A: W/H 4*7 SCREW
- K: W/H 4.8mm HEX
- H: W/H IEEE488 HEX
