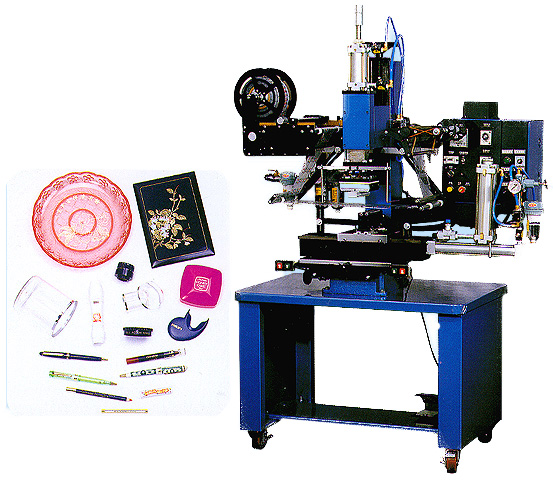

Guger Industries Co., Ltd.
Specifications
- Applications:
- Heat transfer and hot stamp for lipstick tube, powder box, shampoo bottle cap, video cassette panel and clock frame etc.
- Max Pressure : 2,000 kgs
- Foil Rolling Device : 0 ~ 200 (mm)
- Max Head Stroke : 60 (mm)
- Work Table : 280 x 380 (mm)
- Max Opening : 300 (mm)
- Center Distance : 200 (mm)
- Impression Area : 100 x 120 (mm)
- Dimension (L x W x H) : 1,250 x 600 x 1,500 (mm)
- Packaging WT. : 200 kg
- Packaging Dimension (L x W x H) : 1,400 x 720 x 1,650 (mm)
- Net WT : 140 kg
Features
- Strong body design is stable.
- Special design the C.P.A, stable speed, no fruition happens in the slide moving, the best a mounted for hot stamping and transferring.
- Main spindle is precision ground and can operate at low pressure.
- 3 timer controls for better performance, 1 for pressure time, 1 for delay time, 1 for foil feed adjustment.
- Special design for foil feeder.
- High efficient heater device, rae quick easy for hot stamping, transferring or impression.
- Those machines have multi-function, and depend on the printed stuffs for change mounted.
Main Products
Screen Printers, Pad Printers, Hot Stamping, Screen Printers Equipment, Stencil Maker
