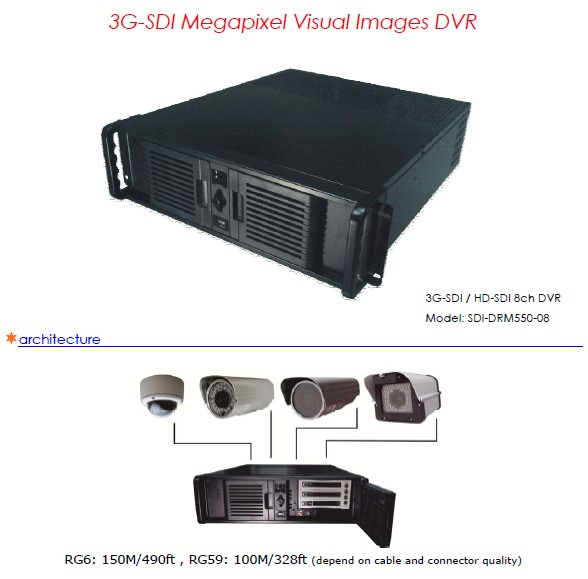

Full HD/HD coding compress system

Vision:

Specification
compressor format	H.264
viewer formatted	16:9 digitalize formatted
visual resolution	Full High Definition 1920 x 1080p
	High Definition 1280 x 720p
frame rate	Full HD 1080p x 80fps,
	HD 720p x 120fps
language OS	English /Chinese tradition
log event	user log moment
setup event	mail and display status
time correction	manual、internet

Backup:

Specification
search mode	date、time、continue、motion、sensor
playback speed	slow speed: 0.1X、0.5Xe
	faster: 1X、2X、3X、4X、5X、8X、10X
record schedule	continue、motion、sensor
record quality	contrast、brightness、saturation、hue
record picture	average、good、better、best
motion detected	16x16 area、sensitivity(1~32)、level(1~100)
microscope function	gray、extend、smooth、sharp、heavy、light
backup device	Can supporting USB/DVD
backup function	enhance、printer、smart or picture search

Software:

Specification
user manager	More than 32 and different control level
multi viewer	full/single/quad/swop
visual position	exchange visual by mouse
screen statue	camera title、status、time date、fps

Others:

Specification
visual input	3G-SDI/HD-SDI, BNC x 8
visual output	HDMI/ DVI-D/ VGA
hard disk capacitor	1xSSD、2x2T HDD (can supporting 5xHDD)
raid disk	raid 0/1/5/10 optional
protocol	Serial port、baud、parity、bit、stop
PTZ function	pan/tilt driver、zoom lens、aux
Dimension	530(L)x430(D)x180(H)mm
