Customized constant current driver are existing SOCC's in product line that are modified to meet each customer's individual requirements. Regarding form factor and feature set; modifications to standard SOCC's products like constant current driver may include: change of board size and shape, customer's choice of connectors, encapsulation for operation in harsh conditions, and put your brand on the label of products.
Established in 2003, we've been working on developing better products to the market. The constant current driver is one of our featured products. It has been sold to many countries, winning fames from customers all over the world.
If you would like to know detail about constant current driver manufactured by SOC, or even want to know more about us, please feel free to send your inquiry to us. Presenting you the best is always our ultimate goal.
| Parameter | HPD075B-F1548 | HPD075B-F35180 |
|---|---|---|
| Input Voltage | AC90~264V | |
| Input Frequency | 47~63Hz | |
| Output Voltage Range | 28~48V | 100~180V |
| Output Current Range (Adjustable) | 520~1500mA PRESET@700mA | PRESET@350mA |
| Max. Output Power | 72W | 72W |
| White LEDs in Series(Min.~Max.) | 9~13PCS | 30~50PCS |
| Operating Temperature | -30℃~60℃ | |
| Dimension | 138mm(L)*58mm(W)*35mm(H) | |
| Certified | CE / FCC |
Specifications
- Constant Output

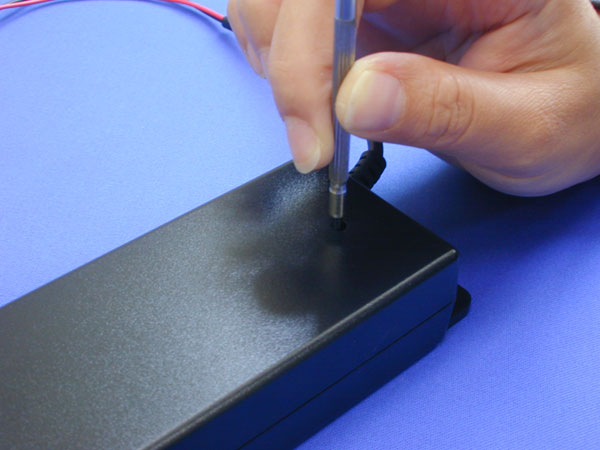

- Output Current adjustable
- Easy to drive High Power LEDs in series
- Output Protection: Over Current / Over Voltage / Short Circuit Open/Short Protection
- Efficiency＞84%(Typical)
- PFC＞0.95
- Meet all safety design (UL / CE / FCC/ PSE..)
- Applications: High Power LEDs Lighting / Cove lighting / Street Light.
