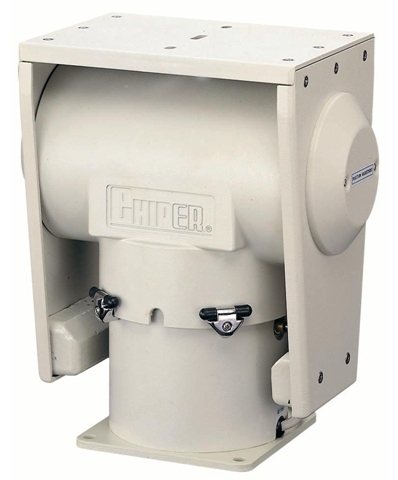

Chiper Technology
Features & Characteristic:
- Weather proof standard IP-55
- Pan rotation angle: 0° ~ 355°, Tilt: ±95°
- Available with optional preset function.
- Optional Variable speed function
- Hardened steel gear, for longest durability
- Optional Chromium surface finishing for High corrosive or Acid environment
- Heavy duty Loading, available for other peripherals I.e. IR lamp etc.
| Approval | Compliant to CE |
| Environmental standard | Compliant to IEC529 Dust –proof, |
| water-proof IP-55 international standard | |
| Rotation angle | Horizontal Pan : 0° ~ 355° |
| Vertical Tilt : ±90° (Max. ±95°) | |
| Rotation mode | Auto Pan feature |
| Loading capacity | Upright installation 50 Kg/110Lb , |
| Balancing | Lead block on both hands of P/T |
| Rotating speed | Horizontal Pan : 6° /sec. , Vertcal Tilt : 6° /sec. |
| Protection ambient | Limit switch on Pan & tilt |
| Limit switch | Pan & Tilt are 15A 10 million cycle rating |
| Gears | Hardened steel |
| Safety protection | Built-in electronic recovery breaker, |
| over heated or power surge shut down | |
| Safety protection | Internal electronic breaker. |
| Auto shut down when power surge or over heat. | |
| Safety recovery | Auto power recovery when power surge or |
| over heated corrected | |
| Sealing structure | Rubber ring & gasket seals |
| for all weather environmental protection. | |
| Power cable | Fire-proof UL wire DIN 6pin detachable plug. |
| Power supply | AC24V/AC110V/AC220V , 50Hz/ 60Hz , 8W ´ 2 |
| Body structure | Die-casting aluminum alloy housing , Ivory color |
| Optional Heater | Option : Start :7°C(44.5°F) , Off :17°C(62.6°F) |
| Ambient temperature | Operation -26°C ~ 65°C (-15°F ~ 149°F) , |
| Storage -30°C ~ 70°C | |
| Mount plate dimension | Mount plate : 133x133mm , |
| screw holes : 114x114mm 1/2" ø´x 4 | |
| Body dimension | 247(W) x 266(H) x 153(D) mm, 10Kg |
| OPTIONAL VARIABLE SPEED MODEL ROTATION SPEED | |
|---|---|
| Pan | 0.15° to 13° /sec |
| Tilt | 0.15° to 13° /sec. |
| Model # description | |
| CPT-AP112T /H | w/ Heater |
| CPT-AP112T /E | Chromium processed |
| CPT-AP112T /PS | Preset |
| CPT-AP112T /VS | Variable Speed |
