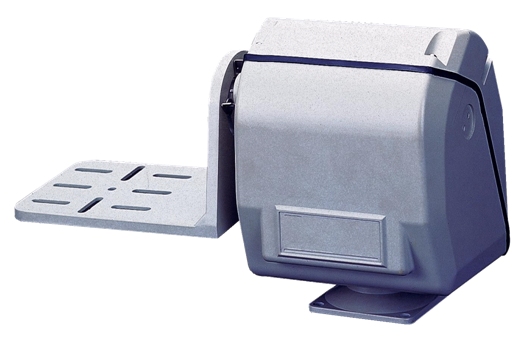

Features & Characteristic:
- Weather proof standard IP-67
- Rotation angle: Pan 0°~ 365°, Tilt: +20°~ -90°
- Optional preset position function
- Optional Variable speed model: 6°/7.5°/10°/20°/30°/sec.
- Hardened Body with Chromium (Cr.) processed Strong resistance against Corrosive environment.
- Heavy duty loading for CCTV peripherals loading.
| Loading capacity | 25 Kg/ 55Lb | ||
| Approval | Compliant to CE | ||
| Environmental standard | Compliant to IEC529 Dust-proof, | ||
| Water-proof IP-66 International standard | |||
| Rotation angle | Pan : 0° ~ 365°, Tilt : +20° ~ -90° | ||
| Rotation speed | Standard model : Pan : 6° / sec., Tilt : 6° / sec. | ||
| Auto Pan feature | Yes | ||
| Preset | Optional | ||
| Protection ambient | Limit switch on Pan & tilt | ||
| Limit switch | Pan & Tilt are 15A 10 million cycle rating | ||
| Gears | Hardened steel | ||
| Safety protection | Built-in electronic recovery breaker, | ||
| over heated or power surge shut down | |||
| Safety recovery | Resume working automatically after | ||
| overheated, power surge corrected | |||
| Sealing structure | Corrosion rubber ring & gasket seals | ||
| Power cable | Fire-proof UL cable 6pin detachable, | ||
| 12pin Pre-Set Mode | |||
| Power supply | AC24V/AC110V/AC220V , 50Hz/ 60Hz , 8W x 2 | ||
| Casing structure | Aluminum alloy & stainless steel, color Ivory | ||
| Optional Heater | Option : Start :7°C(44.5°F) , Off :17°C(62.6°F) | ||
| Ambient temperature | Operation -26°C ~ 65°C (-15°F ~ 149°F) , | ||
| Storage -30°C ~ 70°C | |||
| Mount plate dimension | Mount plate : 85x85mm , | ||
| screw holes : 72x72mm 8.6 ø´x 4 | |||
| Body dimension | 380(W) x 230(H) x 223(D) mm | ||
| N.W. : 6Kg , G.W. : 6.5Kg | |||
| OPTIONAL VARIABLE SPEED MODEL ROTATION SPEED | |||
| Pan | 3°~48° /sec | ||
| Tilt | 6°~24° /sec. | ||
| Model # description | |||
|---|---|---|---|
| CPT-PT25： | CPT-PT35： | ||
| CPT-PT25 | CPT-PT35 | Standard PAN TILT speed | |
| CPT-PT25 /L | CPT-PT35 /L | PAN 7.5° / sec.，TILT 6° / sec. | |
| CPT-PT25 /A | CPT-PT35 /A | PAN 10° / sec.，TILT 6° / sec. | |
| CPT-PT25 /B | CPT-PT35 /B | PAN 20° / sec.，TILT 10° / sec. | |
| CPT-PT25 /C | CPT-PT35 /C | PAN 30° / sec.，TILT 10° / sec. | |
| CPT-PT25 /PS | CPT-PT35 /PS | Optional preset | |
| CPT-PT25 /E | CPT-PT35 /E | Optional Chromium process | |
| CPT-PT25 /T | CPT-PT35 /T | Optional Big angle | |
| CPT-PT25 /H | CPT-PT35 /H | w/ Heater | |
