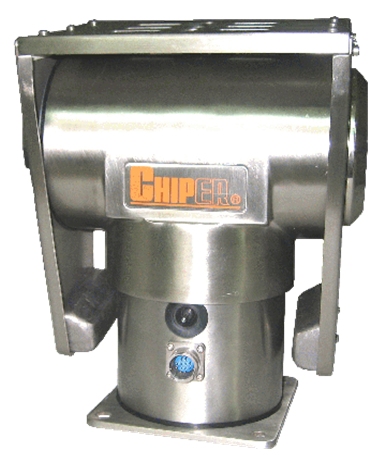

Features & Characteristic:
- Stainless steel body AIS1316L
- Absolute resistant against corrosive environment
- Weather proof standard IP-66
- Pan rotation angle: 0° ~ 360°, Tilt: ±95°
- Available with optional preset function.
- Optional Various speed models
- Hardened steel gear, for longest durability
- Built-in electronic recovery breaker, over heated or power surge shut down
- Auto power recovery when power surge or over heated corrected
- Heavy duty Loading, available for other peripherals I.e. IR lamp etc.
| Approval | Compliant to CE | |
| Environmental standard | Compliant to IEC529 Dust –proof, water-proof IP-66 | |
| Rotation angle | Horizontal Pan : 0° ~ 360° Vertical Tilt : ±90° (Max. ±95°) | |
| Loading capacity | Upright installation 50 Kg/110Lb , Inverted installation 22.5Kg/ 55Lb loading | |
| Balancing | Lead block on both hands of P/T | |
| Default Rotating speed | Horizontal Pan : 6° /sec. , Vertcal Tilt : 6° /sec. | |
| Protection ambient | Limit switch on Pan & tilt | |
| Limit switch | Pan & Tilt are 15A 10 million cycle rating | |
| Gears | Hardened steel | |
| Safety protection | Built-in electronic recovery breaker, over heated or power surge shut down | |
| Safety recovery | Auto power recovery when power surge or over heated corrected | |
| Sealing structure | Rubber ring & gasket seals for all weather environmental protection. | |
| Power cable | Fire-proof UL wire DIN 12 pin detachable plug. | |
| Power supply | AC110V/AC220V , 50Hz/ 60Hz , 15W ´ 2 | |
| Body structure | Hardened Stainless steel AISI316L(JIS SUS316) w/ 4H surface hardening "Electric swim" coating | |
| Application | Applicable for chemical gas environment, Heavy poluted area, High salt area, Acid corrosive area | |
| Optional Heater | Option : Start :7°C(44.5°F) , Off :17°C(62.6°F) | |
| Ambient temperature | Operation -26°C ~ 65°C (-15°F ~ 149°F) , Storage -30°C ~ 70°C | |
| Mount plate dimension | Mount plate : 133x133mm , screw holes : 114x114mm 1/2" ø´x 4 | |
| Body dimension | 257(W) x 266(H) x 153(D) mm, 15Kg | |
| Optional speed model | PAN | TILT |
| Variable speed | 0.15° to 13° /sec | 0.15° to 13° /sec |
| A type | 10° /sec | 6° /sec |
| B type | 20° /sec | 10° /sec |
| C type | 30° /sec | 12° /sec |
| Optional Preset function w/ built in ACCURATE METALLIZED TRIMMER | ||
| Model # description | ||
|---|---|---|
| CPT-AP112T-S316 /H | w/ Heater | |
| CPT-AP112T-S316 /PS | w/ Preset function | |
| CPT-AP112T-S316 /VS | Variable Speed 0.15° to 13° /sec | |
| CPT-AP112T-S316 /A | Optional Speed Pan 10°, Tilt 6° /sec | |
| CPT-AP112T-S316 /B | Optional Speed Pan 20°, Tilt 10° /sec | |
| CPT-AP112T-S316 /C | Optional Speed Pan 30°, Tilt 12° /sec | |
